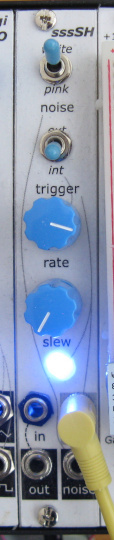

Eurorack Noise / S&H Module
Len42·Synth·modules/Noise-SH/Noise-SH.kicad_pcb
About the Eurorack Noise / S&H Module
Eurorack Noise / S&H Module is an open source PCB design by Len42, published on GitHub. It is a 6-layer board measuring 50.8 × 106.7 mm, with 70 components from 50 distinct parts.
Other key parts include the TL072, ICM7556 and TL074. By type, the board carries 28 resistors, 18 capacitors, 7 connectors, 5 transistors, 5 diodes and 3 ICs.
It belongs with the audio designs in this gallery.
From the project
Eurorack synthesizer module designs
This module is built using the Delptronics Module Construction Set which includes PCBs for the front panel controls and other components. The PCB layout file is just a guide showing how I placed the components on the Delptronics boards. (It's a bit of a mess - sorry!)
Please note that I am a hobbyist, not a trained electronics engineer. No guarantees!

Main components on the Eurorack Noise / S&H Module
Eurorack Noise / S&H Module bill of materials (BOM)
70 components, 50 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TL072 Texas Instruments | DIP-8_W7.62mm_LongPads | U2 |
| 1 | ICM7556 Renesas / Intersil | DIP-14_W7.62mm_LongPads | U3 |
| 1 | TL074 Texas Instruments | DIP-14_W7.62mm_LongPads | U4 |
| 2 | Q_NPN_2N3904 2N3904 Central Semiconductor | TO-92_Inline_Wide | Q1, Q2 |
| 1 | J309 InterFET | TO-92_Inline_Wide | Q3 |
| 2 | Q_PNP_2N3906 2N3906 ON Semiconductor / Fairchild | TO-92_Inline_Wide | Q4, Q5 |
| 4 | JACK_WQP-PJ398 WQP-PJ398SM QingPu / Thonk | Jack_3.5mm_QingPu_WQP-PJ398SM_Vertical | J5, J6, J7, J8 |
| 1 | Conn_Front | PinSocket_Delptronics_Front | J9 |
| 1 | Conn__Back | PinHeader_Delptronics_Back_Left_4HP | J10 |
| 1 | Eurorack_10 | PinHeader-Eurorack-10-TH | J11 |
| 2 | 1M Alpha | Potentiometer_Alpha_RD901F-40-00D_Single_Vertical | RV7, RV8 |
| 1 | ON_ON Mountain Switch | SW_SPDT_THT_2.54 | SW5 |
| 1 | SPST Mountain Switch | SW_SPST_THT_2.54 | SW6 |
| 2 | MBR150 On Semi | D_DO-41_SOD81_P7.62mm_Horizontal | D1, D2 |
| 1 | LED_5MM_BLUE LED_5mm_Blue VCC | LED_D5.0mm | D3 |
| 1 | 1N4148 On Semi / Fairchild | SB_Gen_1 | D4 |
| 1 | 1N4148 On Semi / Fairchild | SB_Gen_6 | D5 |
| 4 | CP_10U 10U Panasonic | CP_Radial_D4.0mm_P2.50mm | C1, C2, C10, C11 |
| 5 | CC_100N 100N TDK | C_Disc_D5.0mm_W2.5mm_P2.50mm | C3, C4, C5, C6, C7 |
| 1 | 4U7 Rubycon | CP_Radial_D5.0mm_P2.50mm | C8 |
Show 30 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 1U Rubycon | CP_Radial_D5.0mm_P2.50mm | C9 |
| 1 | 100N TDK | C_Disc_D5.0mm_W2.5mm_P2.50mm | C12 |
| 1 | 100P TDK | C_Disc_D6.0mm_W4.4mm_P5.00mm | C13 |
| 2 | 1U TDK | C_Rect_L9.0mm_W4.0mm_P7.50mm_MKT | C14, C18 |
| 2 | 10N KEMET | C_Rect_Kemet_L7.2mm_W2.5mm_P5mm | C15, C16 |
| 1 | 1N KEMET | C_Rect_Kemet_L7.2mm_W2.5mm_P5mm | C17 |
| 2 | 10R Mouser | SB_Gen_2 | R1, R2 |
| 1 | 220K YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R3 |
| 1 | 10K YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R4 |
| 2 | 100K YAGEO | SB_Gen_1 | R5, R14 |
| 2 | 1M YAGEO | SB_Gen_1 | R6, R13 |
| 1 | 4K7 YAGEO | SB_Gen_6 | R7 |
| 1 | 11K YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R8 |
| 1 | 330K YAGEO | SB_Gen_1 | R9 |
| 1 | 15K YAGEO | SB_Gen_4 | R10 |
| 1 | 1M YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R11 |
| 1 | 120K YAGEO | SB_Gen_1 | R12 |
| 1 | 1M YAGEO | SB_Gen_2 | R15 |
| 2 | 10K YAGEO | SB_Gen_2 | R16, R19 |
| 1 | 10K YAGEO | SB_Gen_1 | R17 |
| 1 | R_1K_OUTPUT 1K Vishay / Dale | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R18 |
| 1 | 1K5 YAGEO | SB_Gen_1 | R20 |
| 1 | 82K YAGEO | SB_Gen_1 | R21 |
| 1 | R_1K_OUTPUT 2K2 Vishay / Dale | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R22 |
| 1 | 10K YAGEO | SB_Gen_6 | R23 |
| 1 | 6K2 YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R24 |
| 1 | 13K YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R25 |
| 1 | 4K7 YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R26 |
| 1 | 3K9 YAGEO | SB_Gen_2 | R27 |
| 1 | R_1K_OUTPUT 1K Vishay / Dale | SB_Gen_2 | R28 |
Eurorack Noise / S&H Module design files
The KiCad project lives in the Len42/Synth repository on GitHub; these links point at the commit this page was built from.
Eurorack Noise / S&H Module: common questions
How big is the Eurorack Noise / S&H Module?
The Eurorack Noise / S&H Module measures 50.8 × 106.7 mm, has 6 copper layers and is 1.6 mm thick.
How many components are on the Eurorack Noise / S&H Module?
70 components, from 50 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Eurorack Noise / S&H Module design files?
From the Len42/Synth repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Eurorack Noise / S&H Module design in my own project?
The repository has no license, so all rights stay with Len42. Use it as a reference, and ask the author before reusing the design.
