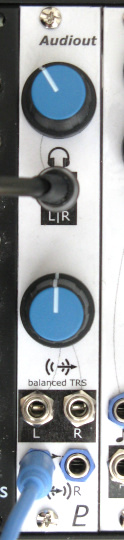

Eurorack Audiout Module
Len42·Synth·modules/Audiout/Audiout.kicad_pcb
About the Eurorack Audiout Module
Eurorack Audiout Module is an open source PCB design by Len42, published on GitHub. It is a 2-layer board measuring 40.6 × 96.1 mm, with 58 components from 25 distinct parts.
Other key parts include the TL072, TL074 and LM4808. By type, the board carries 28 resistors, 17 capacitors, 8 connectors and 3 ICs.
It belongs with the audio designs in this gallery.
From the project
Eurorack synthesizer module designs
PCB layouts are provided in KiCad and gerber formats. A front panel design is included as a drilled PCB layout (with no labels or graphics).
The PCBs that I used can be ordered from OSH Park. The designs are here: - Front panel - Controls board - Main board
Please note that I am a hobbyist, not a trained electronics engineer. No guarantees!

Main components on the Eurorack Audiout Module
Eurorack Audiout Module bill of materials (BOM)
58 components, 25 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TL072 Texas Instruments | DIP-8_W7.62mm | U2 |
| 1 | TL074 Texas Instruments | DIP-14_W7.62mm | U3 |
| 1 | LM4808 Texas Instruments | Breakout_DIP-SOIC-8_W7.62mm | U4 |
| 2 | WQP-PJ398 QingPu / Thonk | Jack_3.5mm_QingPu_WQP-PJ398SM_Vertical | J1, J2 |
| 3 | WQP419GR QingPu / Thonk | Jack_3.5mm_QingPu_WQP-PJ366ST_Vertical | J3, J4, J5 |
| 1 | Conn_Front | PinSocket_1x18_P2.54mm_Vertical | J6 |
| 1 | Conn_Rear | PinHeader_1x18_P2.54mm_Horizontal | J7 |
| 1 | CONN_EURORACK_16 Conn_Eurorack_16 Wurth Elektronik | IDC-Header-Eurorack-16-TH | J8 |
| 2 | 100K Alpha | Potentiometer_Alpha_RD902F-40-00D_Dual_Vertical | RV1, RV2 |
| 2 | 10U Panasonic | CP_Radial_D4.0mm_P1.50mm | C1, C2 |
| 1 | 10U Panasonic | CP_Radial_D4.0mm_P2.50mm | C3 |
| 5 | 100N TDK | C_Disc_D5.0mm_W2.5mm_P2.50mm | C4, C5, C6, C7, C8 |
| 2 | 10U Panasonic | C_Radial_D5.0mm_H5.0mm_P2.50mm | C9, C10 |
| 2 | 47P Vishay | C_Disc_D5.0mm_W2.5mm_P2.50mm | C11, C12 |
| 1 | 1U Rubycon | CP_Radial_D5.0mm_P2.00mm | C15 |
| 2 | 4U7 Panasonic | CP_Radial_D4.0mm_P2.50mm | C16, C17 |
| 2 | 220U Panasonic | CP_Radial_D8.0mm_P3.50mm | C18, C19 |
| 2 | 150K YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1, R2 |
| 2 | 47K YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R3, R4 |
| 8 | 10K YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R5, R6, R7, R8, R29, R30, R31, R32 |
Show 5 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 43K2 Vishay / Dale | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R9, R10 |
| 4 | 100K YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R11, R12, R19, R20 |
| 4 | 100R YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R15, R16, R17, R18 |
| 4 | 3K9 YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R21, R22, R23, R24 |
| 2 | 33K2 Vishay / Dale | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R33, R34 |
Eurorack Audiout Module design files
The KiCad project lives in the Len42/Synth repository on GitHub; these links point at the commit this page was built from.
Eurorack Audiout Module: common questions
How big is the Eurorack Audiout Module?
The Eurorack Audiout Module measures 40.6 × 96.1 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Eurorack Audiout Module?
58 components, from 25 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Eurorack Audiout Module design files?
From the Len42/Synth repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Eurorack Audiout Module design in my own project?
The repository has no license, so all rights stay with Len42. Use it as a reference, and ask the author before reusing the design.
