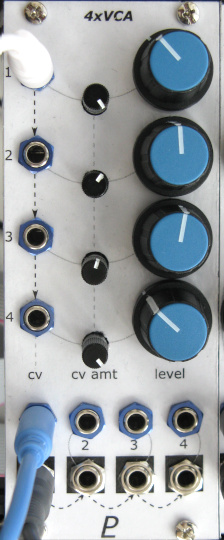

Eurorack 4XVCA Module
Len42·Synth·modules/VCA-4/VCA-4.kicad_pcb
About the Eurorack 4XVCA Module
Eurorack 4XVCA Module is an open source PCB design by Len42, published on GitHub. It is a 2-layer board measuring 50.5 × 108.2 mm, with 108 components from 26 distinct parts.
Other key parts include the LM4040, SSI2164 and TL074. By type, the board carries 55 resistors, 20 capacitors, 19 connectors and 6 ICs.
It belongs with the audio designs in this gallery.
From the project
Eurorack synthesizer module designs
The PCBs that I used can be ordered from OSH Park. The designs are here: - Front panel - Controls board - Middle board - Back board
Please note that I am a hobbyist, not a trained electronics engineer. No guarantees!

Main components on the Eurorack 4XVCA Module
Eurorack 4XVCA Module bill of materials (BOM)
108 components, 26 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LM4040 Texas Instruments | TO-92-2_Wide | U1 |
| 1 | SSI2164 Sound Semiconductor | Breakout_DIP-SOIC-16_W15.24mm | U2 |
| 4 | TL074 Texas Instruments | DIP-14_W7.62mm | U3, U4, U5, U6 |
| 12 | WQP-PJ398 QingPu / Thonk | Jack_3.5mm_QingPu_WQP-PJ398SM_Vertical | J1, J2, J3, J4, J5, J6, J7, J8 +4 |
| 2 | Conn_Socket_24 | PinSocket_1x24_P2.54mm_Vertical | J13, J15 |
| 2 | Conn_Header_24 | PinHeader_1x24_P2.54mm_Vertical | J14, J16 |
| 1 | Conn_Eurorack_10 Wurth Elektronik | IDC-Header-Eurorack-10-TH | J17 |
| 1 | Conn_Socket_4 | PinSocket_1x04_P2.54mm_Vertical | J18 |
| 1 | Conn_Header_4 | PinHeader_1x04_P2.54mm_Vertical | J19 |
| 4 | 100K Alpha | Potentiometer_Alpha_RD901F-40-00D_Single_Vertical | RV1, RV3, RV5, RV7 |
| 4 | 100K Song Huei | Potentiometer_SongHuei_Single_Vertical | RV2, RV4, RV6, RV8 |
| 2 | 10U Panasonic | CP_Radial_D4.0mm_P1.50mm | C1, C2 |
| 10 | 100N TDK | C_Disc_D5.0mm_W2.5mm_P2.50mm | C3, C4, C5, C6, C7, C8, C9, C10 +2 |
| 4 | 1N2 Kemet | C_Rect_Kemet_L7.2mm_W2.5mm_P5mm | C13, C14, C17, C18 |
| 4 | 100P Vishay | C_Disc_D5.0mm_W2.5mm_P2.50mm | C15, C16, C19, C20 |
| 5 | 1K Vishay / Dale | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R1, R23, R25, R48, R49 |
| 4 | 25K5 YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R2, R3, R52, R53 |
| 1 | 12K YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R4 |
| 4 | 49K9 Vishay / Dale | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R5, R6, R26, R27 |
| 4 | 220R YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R7, R8, R28, R31 |
Show 6 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 4 | 75K YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R9, R11, R29, R32 |
| 4 | 150K YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R10, R12, R30, R33 |
| 4 | 60K1 Vishay / Dale | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R13, R14, R34, R35 |
| 4 | 20K YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R15, R16, R36, R37 |
| 17 | 47K YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R17, R18, R19, R20, R21, R22, R24, R38 +9 |
| 4 | 11K YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R50, R51, R54, R55 |
Eurorack 4XVCA Module design files
The KiCad project lives in the Len42/Synth repository on GitHub; these links point at the commit this page was built from.
Eurorack 4XVCA Module: common questions
How big is the Eurorack 4XVCA Module?
The Eurorack 4XVCA Module measures 50.5 × 108.2 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Eurorack 4XVCA Module?
108 components, from 26 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Eurorack 4XVCA Module design files?
From the Len42/Synth repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Eurorack 4XVCA Module design in my own project?
The repository has no license, so all rights stay with Len42. Use it as a reference, and ask the author before reusing the design.
