Eurorack SSI2131 VCO
Len42·Synth·modules/VCO-2131/VCO-2131.kicad_pcb

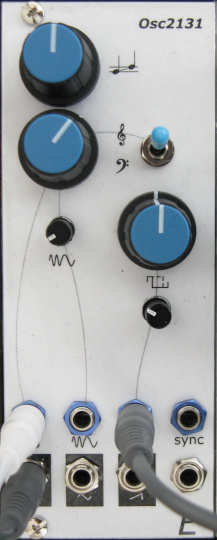

About the Eurorack SSI2131 VCO PCB
Eurorack SSI2131 VCO is an open source PCB design by Len42, published on GitHub. It is a 2-layer board measuring 50.5 × 108.2 mm, with 98 components from 44 distinct parts.
Other key parts include the L78L05, L79L05, LM4040, SSI2131 and TL074. By type, the board carries 46 resistors, 17 connectors, 14 capacitors, 8 ICs, 3 diodes and 1 jumper.
It belongs with the audio designs in this gallery.
From the project
Eurorack synthesizer module designs
Here are instructions for calibration of the VCO for proper 1V/octave tracking.
PCB layouts are provided in KiCad and gerber formats. A drilling template is provided for the front panel.
The PCBs that I used can be ordered from OSH Park. The designs are here: - Controls board - Middle board (Note: This is an older version of the PCB. The sub-oscillator circuit does not work on this version.) - Back board

Main components on the Eurorack SSI2131 VCO
Eurorack SSI2131 VCO bill of materials (BOM)
98 components, 44 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | L78L05 STMicroelectronics | TO-92_Inline_Wide | U1 |
| 1 | L79L05 STMicroelectronics | TO-92_Inline_Wide | U2 |
| 1 | LM4040 Texas Instruments | TO-92-2_Wide | U3 |
| 1 | SSI2131 Sound Semiconductor | Breakout_DIP-16_W15.24mm | U4 |
| 3 | TL074 Texas Instruments | DIP-14_W7.62mm | U5, U6, U7 |
| 1 | SN74HCS74 Texas Instruments | Breakout_DIP-SOIC-14_W15.24mm | U8 |
| 8 | WQP-PJ398 QingPu / Thonk | Jack_3.5mm_QingPu_WQP-PJ398SM_Vertical | J1, J2, J3, J4, J5, J6, J7, J8 |
| 1 | CONN_EURORACK_16 Conn_Eurorack_16 Wurth Elektronik | IDC-Header-Eurorack-16-TH | J9 |
| 1 | Conn_Front_Left | PinSocket_1x11_P2.54mm_Vertical | J10 |
| 1 | Conn_Front_Right | PinSocket_1x10_P2.54mm_Vertical | J11 |
| 1 | Conn_Back_Right | PinHeader_1x11_P2.54mm_Vertical | J12 |
| 1 | Conn_Back_Left | PinHeader_1x10_P2.54mm_Vertical | J13 |
| 1 | Conn_Passthru_Right | PinSocket_1x11_P2.54mm_Vertical | J14 |
| 1 | Conn_Passthru_Left | PinSocket_1x10_P2.54mm_Vertical | J15 |
| 1 | Conn_Mid_Right | PinHeader_1x11_P2.54mm_Vertical | J16 |
| 1 | Conn_Mid_Left | PinHeader_1x10_P2.54mm_Vertical | J17 |
| 1 | CV-BUS | PinHeader_1x03_P2.54mm_Vertical | JP1 |
| 5 | 100K Alpha | Potentiometer_Alpha_RD901F-40-00D_Single_Vertical | RV1, RV2, RV3, RV7, RV8 |
| 3 | 5K Bourns | Potentiometer_Bourns_3296W_Vertical | RV9, RV10, RV11 |
| 1 | ON_OFF_ON Mountain Switch | SW_SPDT_THT_2.54 | SW5 |
Show 24 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 3 | 1N5711 STMicroelectronics | D_DO-35_SOD27_P7.62mm_Horizontal | D1, D2, D3 |
| 2 | 10U Panasonic | CP_Radial_D4.0mm_P2.50mm | C1, C2 |
| 9 | 100N TDK | C_Disc_D5.0mm_W2.5mm_P2.50mm | C3, C4, C5, C6, C7, C8, C9, C10 +1 |
| 2 | 10N KEMET | C_Rect_Kemet_L7.2mm_W2.5mm_P5mm | C12, C13 |
| 1 | 3N9 KEMET | C_Rect_Kemet_L7.2mm_W2.5mm_P5mm | C14 |
| 1 | 470R YAGEO | R_Axial_DIN0204_L3.6mm_D1.6mm_P7.62mm_Horizontal | R1 |
| 1 | 4M7 YAGEO | R_Axial_DIN0204_L3.6mm_D1.6mm_P7.62mm_Horizontal | R2 |
| 4 | 1K Vishay / Dale | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R3, R4, R7, R9 |
| 3 | 100K Vishay / Dale | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R5, R6, R17 |
| 6 | 100K YAGEO | R_Axial_DIN0204_L3.6mm_D1.6mm_P7.62mm_Horizontal | R8, R21, R22, R23, R25, R30 |
| 2 | 150K YAGEO | R_Axial_DIN0204_L3.6mm_D1.6mm_P7.62mm_Horizontal | R10, R13 |
| 3 | 75K YAGEO | R_Axial_DIN0204_L3.6mm_D1.6mm_P7.62mm_Horizontal | R11, R12, R24 |
| 1 | 300K YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R14 |
| 2 | 125K Vishay / Dale | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R15, R16 |
| 1 | 62K YAGEO | R_Axial_DIN0204_L3.6mm_D1.6mm_P7.62mm_Horizontal | R18 |
| 2 | 1M5 YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R19, R20 |
| 1 | 270K YAGEO | R_Axial_DIN0204_L3.6mm_D1.6mm_P7.62mm_Horizontal | R26 |
| 1 | 47K YAGEO | R_Axial_DIN0204_L3.6mm_D1.6mm_P7.62mm_Horizontal | R27 |
| 1 | 499K YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R28 |
| 1 | 270R YAGEO | R_Axial_DIN0204_L3.6mm_D1.6mm_P7.62mm_Horizontal | R29 |
| 3 | 9K YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R31, R33, R35 |
| 8 | 36K YAGEO | R_Axial_DIN0204_L3.6mm_D1.6mm_P7.62mm_Horizontal | R32, R34, R36, R42, R43, R44, R45, R46 |
| 2 | 18K YAGEO | R_Axial_DIN0204_L3.6mm_D1.6mm_P7.62mm_Horizontal | R37, R38 |
| 3 | 24K YAGEO | R_Axial_DIN0204_L3.6mm_D1.6mm_P7.62mm_Horizontal | R39, R40, R41 |
Eurorack SSI2131 VCO design files
The KiCad project lives in the Len42/Synth repository on GitHub; these links point at the commit this page was built from.
Eurorack SSI2131 VCO: common questions
How big is the Eurorack SSI2131 VCO PCB?
The Eurorack SSI2131 VCO measures 50.5 × 108.2 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Eurorack SSI2131 VCO?
98 components, from 44 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Eurorack SSI2131 VCO design files?
From the Len42/Synth repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Eurorack SSI2131 VCO design in my own project?
The repository has no license, so all rights stay with Len42. Use it as a reference, and ask the author before reusing the design.
