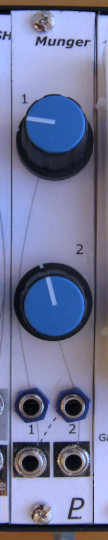

Eurorack Wavefolder Module
Len42·Synth·modules/Wavefolder/Wavefolder.kicad_pcb
About the Eurorack Wavefolder Module
Eurorack Wavefolder Module is an open source PCB design by Len42, published on GitHub. It is a 2-layer board measuring 47.7 × 83 mm, with 59 components from 24 distinct parts.
Other key parts include the TL074 and TL072. By type, the board carries 30 resistors, 10 capacitors, 8 transistors, 7 connectors and 2 ICs.
It belongs with the audio designs in this gallery.
From the project
Eurorack synthesizer module designs
The amount of folding is controlled by the level of the input signal which is adjusted by an attenuator pot on the input. There are no CV inputs, but CV control of the folding can be done by running the input signal through a VCA.
The circuit design is based on Ken Stone's Simple Wave Folder and yusynth's Metalizer.
PCB layouts are provided in KiCad and gerber formats. A PCB layout for a drilled front panel (with no labels) is also included.

Main components on the Eurorack Wavefolder Module
Eurorack Wavefolder Module bill of materials (BOM)
59 components, 24 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TL074 Texas Instruments | DIP-14_W7.62mm | U1 |
| 1 | TL072 Texas Instruments | DIP-8_W7.62mm | U2 |
| 4 | 2N3906 ON Semiconductor / Fairchild | TO-92_Inline_Wide | Q1, Q3, Q5, Q7 |
| 4 | 2N3904 Central Semiconductor | TO-92_Inline_Wide | Q2, Q4, Q6, Q8 |
| 4 | WQP-PJ398 QingPu / Thonk | Jack_3.5mm_QingPu_WQP-PJ398SM_Vertical | J1, J2, J3, J4 |
| 1 | CONN_EURORACK_10 Conn_Eurorack_10 Wurth Elektronik | IDC-Header-Eurorack-10-TH | J101 |
| 1 | Conn_Front | PinSocket_1x09_P2.54mm_Vertical | J102 |
| 1 | Conn_Back | PinHeader_1x09_P2.54mm_Horizontal | J103 |
| 2 | 100K Alpha | Potentiometer_Alpha_RD901F-40-00D_Single_Vertical | RV1, RV2 |
| 2 | 680N KEMET | C_Rect_L7.2mm_W4.5mm_P5.00mm | C1, C2 |
| 2 | 10U Panasonic | C_Radial_D5.0mm_H5.0mm_P2.50mm | C3, C4 |
| 2 | 10U Panasonic | CP_Radial_D5.0mm_P2.50mm | C101, C102 |
| 4 | 100N TDK | C_Disc_D5.0mm_W2.5mm_P2.50mm | C103, C104, C105, C106 |
| 2 | 499K YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1, R16 |
| 4 | 100K YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R2, R15, R17, R30 |
| 2 | 18K YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R3, R18 |
| 7 | 15K YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R4, R5, R10, R11, R19, R25, R26 |
| 4 | 10K YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R6, R12, R21, R27 |
| 2 | 120K YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R7, R22 |
| 2 | 27K YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R8, R23 |
Show 4 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 68K YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R9, R24 |
| 2 | 200K YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R13, R28 |
| 2 | 1K Vishay / Dale | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R14, R29 |
| 1 | 15K YAGEO | SB_Gen_1 | R20 |
Eurorack Wavefolder Module design files
The KiCad project lives in the Len42/Synth repository on GitHub; these links point at the commit this page was built from.
Eurorack Wavefolder Module: common questions
How big is the Eurorack Wavefolder Module?
The Eurorack Wavefolder Module measures 47.7 × 83 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Eurorack Wavefolder Module?
59 components, from 24 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Eurorack Wavefolder Module design files?
From the Len42/Synth repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Eurorack Wavefolder Module design in my own project?
The repository has no license, so all rights stay with Len42. Use it as a reference, and ask the author before reusing the design.
