About the Switches PCB
Switches is an open source PCB design by Len42, published on GitHub. It is a 2-layer board measuring 40.1 × 108.2 mm, with 98 components from 21 distinct parts.
Other key parts include the TL074 and SN74HCS74. By type, the board carries 44 resistors, 21 capacitors, 13 connectors, 12 transistors, 4 ICs and 4 switches.
It belongs with the audio designs in this gallery.
From the project

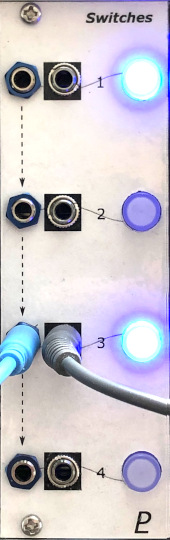

Eurorack synthesizer module designs
This module requires a 16-pin Eurorack power cable that supplies +5 V power in addition to +12 V and -12 V.
PCB layouts are provided in KiCad and gerber formats. A PCB layout for a drilled front panel (with no labels) is also included.
The PCBs that I used can be ordered from OSH Park. The designs are here: - Main board - Controls board - Front panel
Please note that I am a hobbyist, not a trained electronics engineer. No guarantees!

Main components on the Switches
Switches bill of materials (BOM)
98 components, 21 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | TL074 Texas Instruments | DIP-14_W7.62mm | U1, U3 |
| 2 | SN74HCS74 Texas Instruments | SOIC-14_3.9x8.7mm_P1.27mm | U2, U4 |
| 4 | 2N3906 ON Semiconductor / Fairchild | TO-92_Inline_Wide | Q1, Q2, Q7, Q8 |
| 8 | J109 onsemi / Fairchild | TO-92_Inline_Wide | Q3, Q4, Q5, Q6, Q9, Q10, Q11, Q12 |
| 8 | WQP-PJ398 QingPu / Thonk | Jack_3.5mm_QingPu_WQP-PJ398SM_Vertical | J1, J2, J3, J4, J5, J6, J7, J8 |
| 1 | CONN_EURORACK_16 Conn_Eurorack_16 Wurth Elektronik | IDC-Header-Eurorack-16-TH | J9 |
| 1 | Conn_Front_Top | PinSocket_1x10_P2.54mm_Vertical | J10 |
| 1 | Conn_Front_Bottom | PinSocket_1x10_P2.54mm_Vertical | J11 |
| 1 | Conn_Back_Top | PinHeader_1x10_P2.54mm_Vertical | J12 |
| 1 | Conn_Back_Bottom | PinHeader_1x10_P2.54mm_Vertical | J13 |
| 4 | D6RLXXF1 D6RLxxF1 C&K | SW_Push_LED_C&K_D6R | SW1, SW2, SW3, SW4 |
| 14 | 100N TDK | C_Disc_D5.0mm_W2.5mm_P2.50mm | C1, C2, C3, C4, C5, C6, C7, C8 +6 |
| 3 | 10U Panasonic | CP_Radial_D5.0mm_P2.50mm | C9, C10, C17 |
| 4 | 1N FG18X7R1H102KNT06 | C_Disc_D5.0mm_W2.5mm_P2.50mm | C11, C12, C19, C20 |
| 24 | 10K YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1, R2, R3, R4, R11, R12, R13, R14 +16 |
| 4 | 1K YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R5, R6, R27, R28 |
| 4 | 330R YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R7, R8, R29, R30 |
| 4 | 100K 100k YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R9, R10, R31, R32 |
| 4 | 240K YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R15, R16, R37, R38 |
| 2 | 1K Vishay / Dale | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R21, R43 |
Show 1 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 1K Vishay / Dale | SB_Gen_1 | R22, R44 |
Switches design files
The KiCad project lives in the Len42/Synth repository on GitHub; these links point at the commit this page was built from.
Switches: common questions
How big is the Switches PCB?
The Switches measures 40.1 × 108.2 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Switches?
98 components, from 21 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Switches design files?
From the Len42/Synth repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Switches design in my own project?
The repository has no license, so all rights stay with Len42. Use it as a reference, and ask the author before reusing the design.
