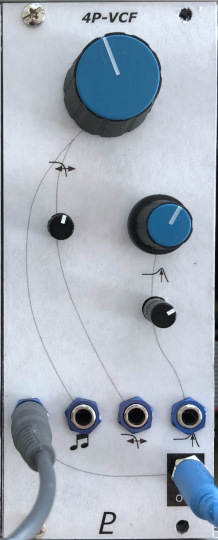

Eurorack 4-Pole Filter
Len42·Synth·modules/VCF-4P/VCF-4P.kicad_pcb
About the Eurorack 4-Pole Filter PCB
Eurorack 4-Pole Filter is an open source PCB design by Len42, published on GitHub. It is a 2-layer board measuring 50.3 × 102.6 mm, with 60 components from 28 distinct parts.
Other key parts include the SSI2140, TL074 and TL072. By type, the board carries 31 resistors, 11 capacitors, 8 connectors, 3 ICs and 1 jumper.
It belongs with the audio designs in this gallery.
From the project
Eurorack synthesizer module designs
A low-pass filter using the SSI2140 chip
The SSI2140 VCF chip comes in an SSOP package that I cannot solder, but fortunately it's also available pre-soldered to a breakout board - that's what I use here.
The filter capacitors C8-C11 are specified as high-stability types. Traditionally, polystyrene caps would be used, but those are hard to come by these days (hardly anyone makes them any more) so I've chosen PPS film caps. Ordinary polyester film caps might be OK, or audio-grade ceramics (C0G/NP0 type).

Main components on the Eurorack 4-Pole Filter
Eurorack 4-Pole Filter bill of materials (BOM)
60 components, 28 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SSI2140 Sound Semiconductor | Breakout_DIP-20_W15.24mm | U1 |
| 1 | TL074 Texas Instruments | DIP-14_W7.62mm | U2 |
| 1 | TL072 Texas Instruments | DIP-8_W7.62mm | U3 |
| 5 | WQP-PJ398 QingPu / Thonk | Jack_3.5mm_QingPu_WQP-PJ398SM_Vertical | J1, J3, J5, J7, J8 |
| 1 | CONN_EURORACK_16 Conn_Eurorack_16 Wurth Elektronik | IDC-Header-Eurorack-16-TH | J9 |
| 1 | Conn_PCB_Front | PinSocket_1x08_P2.54mm_Vertical | J12 |
| 1 | Conn_PCB_Back | PinHeader_1x08_P2.54mm_Vertical | J13 |
| 1 | CV-BUS | PinHeader_1x03_P2.54mm_Vertical | JP1 |
| 2 | 100K Alpha | Potentiometer_Alpha_RD901F-40-00D_Single_Vertical | RV1, RV7 |
| 2 | 100K Song Huei | Potentiometer_SongHuei_Single_Vertical | RV2, RV8 |
| 2 | 10K Bourns | Potentiometer_Bourns_3296P_Horizontal | RV9, RV10 |
| 2 | 10U Panasonic | CP_Radial_D5.0mm_P2.50mm | C1, C2 |
| 4 | 100N TDK | C_Disc_D5.0mm_W2.5mm_P2.50mm | C3, C4, C5, C6 |
| 1 | 10U Panasonic | C_Radial_L11.0mm_D5.0mm_P2.50mm_Horiz | C7 |
| 4 | 1N KEMET | C_Rect_Kemet_L7.2mm_W2.5mm_P5mm | C8, C9, C10, C11 |
| 8 | 100K YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1, R19, R20, R21, R26, R27, R28, R30 |
| 1 | 36K YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R2 |
| 1 | 24K YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R3 |
| 1 | 1K YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R4 |
| 8 | 10K YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R5, R7, R8, R10, R11, R13, R14, R16 |
Show 8 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 4 | 200R YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R6, R9, R12, R15 |
| 1 | 240K YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R17 |
| 1 | 200K YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R18 |
| 1 | 20K YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R22 |
| 1 | 30K YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R23 |
| 2 | 160K YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R24, R29 |
| 1 | 1K Vishay / Dale | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R25 |
| 1 | 33K YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R31 |
Eurorack 4-Pole Filter design files
The KiCad project lives in the Len42/Synth repository on GitHub; these links point at the commit this page was built from.
Eurorack 4-Pole Filter: common questions
How big is the Eurorack 4-Pole Filter PCB?
The Eurorack 4-Pole Filter measures 50.3 × 102.6 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Eurorack 4-Pole Filter?
60 components, from 28 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Eurorack 4-Pole Filter design files?
From the Len42/Synth repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Eurorack 4-Pole Filter design in my own project?
The repository has no license, so all rights stay with Len42. Use it as a reference, and ask the author before reusing the design.
