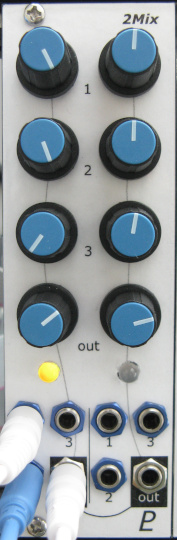

Eurorack Dual Mixer
Len42·Synth·modules/Mixer2/Mixer2.kicad_pcb
About the Eurorack Dual Mixer PCB
Eurorack Dual Mixer is an open source PCB design by Len42, published on GitHub. It is a 2-layer board measuring 40.3 × 108.2 mm, with 71 components from 20 distinct parts.
Other key parts include the TL074 and TL072. By type, the board carries 27 resistors, 14 capacitors, 13 connectors, 6 diodes and 3 ICs.
It belongs with the audio designs in this gallery, and the repository also holds 1 earlier revision of it.
From the project
Eurorack synthesizer module designs
LEDs are used to indicate when an output exceeds the nominal maximum level for Eurorack audio signals, which is 10 V peak-to-peak (-5 V to +5 V). Audio signals with a greater amplitude than that may cause clipping in some modules. The bi-colour LEDs (one for each output) are off when the output level is very low or there is no input connected; green when there is a signal up to about 8 V p-p; yellow(ish) to orange(ish) as the output approaches 10 V p-p; and red above about 10 V p-p. Note that these voltage levels are approximate and the LEDs give only a rough indication of whether the audio…

Main components on the Eurorack Dual Mixer
Eurorack Dual Mixer bill of materials (BOM)
71 components, 20 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | TL074 Texas Instruments | DIP-14_W7.62mm | U1, U2 |
| 1 | TL072 Texas Instruments | DIP-8_W7.62mm | U3 |
| 8 | WQP-PJ398 QingPu / Thonk | Jack_3.5mm_QingPu_WQP-PJ398SM_Vertical | J1, J2, J3, J4, J5, J6, J7, J8 |
| 2 | Conn_PCB_Front | PinSocket_1x09_P2.54mm_Vertical | J9, J11 |
| 2 | Conn_PCB_Back | PinHeader_1x09_P2.54mm_Vertical | J10, J12 |
| 1 | CONN_EURORACK_10 Conn_Eurorack_10 Wurth Elektronik | IDC-Header-Eurorack-10-TH | J13 |
| 8 | 100K Alpha | Potentiometer_Alpha_RD901F-40-00D_Single_Vertical | RV1, RV2, RV3, RV4, RV5, RV6, RV7, RV8 |
| 2 | LED_DUAL_5MM_ACA LED_Dual_5mm_ACA Kingbright | LED_D5.0mm-3 | D1, D2 |
| 4 | 1N4148 On Semi / Fairchild | D_DO-35_SOD27_P7.62mm_Horizontal | D3, D4, D5, D6 |
| 2 | 10U Panasonic | CP_Radial_D5.0mm_P2.50mm | C1, C2 |
| 8 | 100N TDK | C_Disc_D5.0mm_W2.5mm_P2.50mm | C3, C4, C5, C6, C7, C8, C11, C14 |
| 4 | 5P6 KEMET | C_Disc_D5.0mm_W2.5mm_P2.50mm | C9, C10, C12, C13 |
| 15 | 100K YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1, R2, R3, R4, R5, R6, R8, R12 +7 |
| 2 | 51R YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R7, R19 |
| 4 | 10K YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R9, R10, R21, R22 |
| 2 | 4K7 YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R11, R23 |
| 1 | 75K YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R24 |
| 1 | 11K YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R25 |
| 1 | 36K YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R26 |
| 1 | 200R YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R27 |
Eurorack Dual Mixer design files
The KiCad project lives in the Len42/Synth repository on GitHub; these links point at the commit this page was built from.
Eurorack Dual Mixer: common questions
How big is the Eurorack Dual Mixer PCB?
The Eurorack Dual Mixer measures 40.3 × 108.2 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Eurorack Dual Mixer?
71 components, from 20 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Eurorack Dual Mixer design files?
From the Len42/Synth repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Eurorack Dual Mixer design in my own project?
The repository has no license, so all rights stay with Len42. Use it as a reference, and ask the author before reusing the design.
