Security-Alarm-Panel PCB layout, top view — open source ESP32 board by Matyas604
Simulate this board

About the Security-Alarm-Panel PCB

Security-Alarm-Panel is an open source ESP32 PCB design by Matyas604, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 100 × 73.9 mm, with 113 components from 68 distinct parts.

Its main chip is the ESP32-S3-WROOM-1, from the ESP32 family. Other key parts include the AP2114H-3.3TRG1, MCP23008-xSO, USBLC6-2SC6, AP63205WU and CC1101. By type, the board carries 33 capacitors, 25 resistors, 15 connectors, 12 ICs, 10 inductors and 6 diodes.

It belongs with the iot & wireless, displays & leds and power & battery designs in this gallery.

From the project

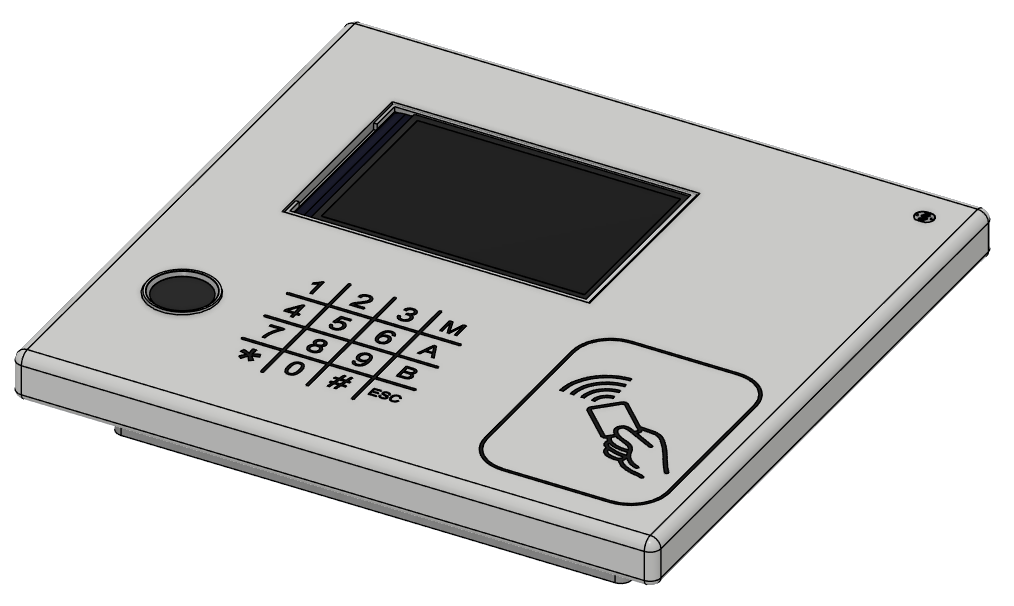

Home Assistant Smart Home Alarm Control Panel with fingerprint reader, NFC/RFID card reader, motion radar, and touchscreen TFT display. It can control your smart home, not just your home security system. Backlit with LED strip and automatic brightness control. And more

I really enjoyed this project, it was probably my biggest and longest project yet. Mainly because of the PCB-it’s probably the most complex one I’ve ever designed. And I actually learned a few new things along the way.

Security-Alarm-Panel, from the project README
From the project README

Main components on the Security-Alarm-Panel

AP2114H-3.3TRG1ESP32-S3-WROOM-1MCP23008-xSOUSBLC6-2SC6AP63205WUCC1101MCP73831T-2ACI/OTMT3608DW01PCEG8205A74AHCT125

Security-Alarm-Panel bill of materials (BOM)

113 components, 68 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
AP2114H-3.3TRG1
IC1
1
ESP32-S3-WROOM-1
U1
1
MCP23008-xSO
U2
1
USBLC6-2SC6
U3
2
AP63205WU
U4, U6
1
CC1101
U5
1
MCP73831T-2ACI/OT
MCP73831T-2ACI_OT
U7
1
MT3608
U8
1
DW01P
U9
1
CEG8205A
U10
1
74AHCT125
U11
1
SI3443DDV-T1-GE3
Q1
1
SS8550
Q2
1
AO3400A
Q3
1
AO3401A
Q4
1
26.0 MHz
Y1
1
USB_C_Receptacle_USB2.0_16P
J1
2
Conn_01x04_Pin
J2, J5
2
Screw_Terminal_01x02
J3, J8
1
Conn_01x14_Pin
J4
Show 48 more
QtyPartRefs
1
Conn_01x06_Pin
J6
1
Conn_01x05_Pin
J7
1
Conn_01x02_Pin
J9
1
Conn_01x02_Pin
J10
3
Conn_01x03_Pin
J11, J13, J15
1
Screw_Terminal_01x06
J12
1
Conn_01x05_Pin
J14
1
Antenna
AE1
1
Buzzer
BZ1
1
1812L150/12DR
F1
2
TS-1088-AR02016
S1, S2
2
SW_Push_SPDT
SW1, SW2
2
SS24
D1, D2
1
LED Red
D3
1
LED Green
D4
2
SS34
D5, D6
2
4.7uH
L1, L9
4
12nH
L2, L3, L6, L7
2
18nH
L4, L5
1
3.3nH
L8
1
4.7uH - CDRH104R
L10
1
1uF
C1
5
22uF
C2, C9, C10, C26, C27
4
100nF
C3, C4, C5, C33
7
10uF
C6, C7, C23, C24, C29, C30, C31
3
0.1uF
C8, C25, C32
2
100nF
C11, C22
1
1pF
C12
1
100pF
C13
2
1.5pF
C14, C15
1
3.3pF
C16
1
12pF
C17
1
47pF
C18
2
27pF
C19, C20
1
10uF
C21
1
100uF
C28
2
5.1k
R1, R2
5
10k
R3, R9, R10, R15, R25
1
100R
R4
4
4.7k
R5, R6, R16, R22
1
R
R7
5
1k
R8, R12, R13, R20, R24
1
2k
R14
2
9.1k
R17, R23
1
47k
R18
1
6.2k
R19
1
100
R21
1
68R
R26

Security-Alarm-Panel design files

The KiCad project lives in the Matyas604/Security-Alarm-Panel repository on GitHub; these links point at the commit this page was built from.

Security-Alarm-Panel: common questions

What microcontroller does the Security-Alarm-Panel use?

The Security-Alarm-Panel is built around the ESP32-S3-WROOM-1, from the ESP32 family.

How big is the Security-Alarm-Panel PCB?

The Security-Alarm-Panel measures 100 × 73.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Security-Alarm-Panel?

113 components, from 68 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Security-Alarm-Panel design files?

From the Matyas604/Security-Alarm-Panel repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Security-Alarm-Panel design in my own project?

Yes, under the terms of its GPL-3.0 license, which Matyas604 chose for the repository.

Can I test firmware for the Security-Alarm-Panel without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
