BitaxeSupra
About the BitaxeSupra PCB

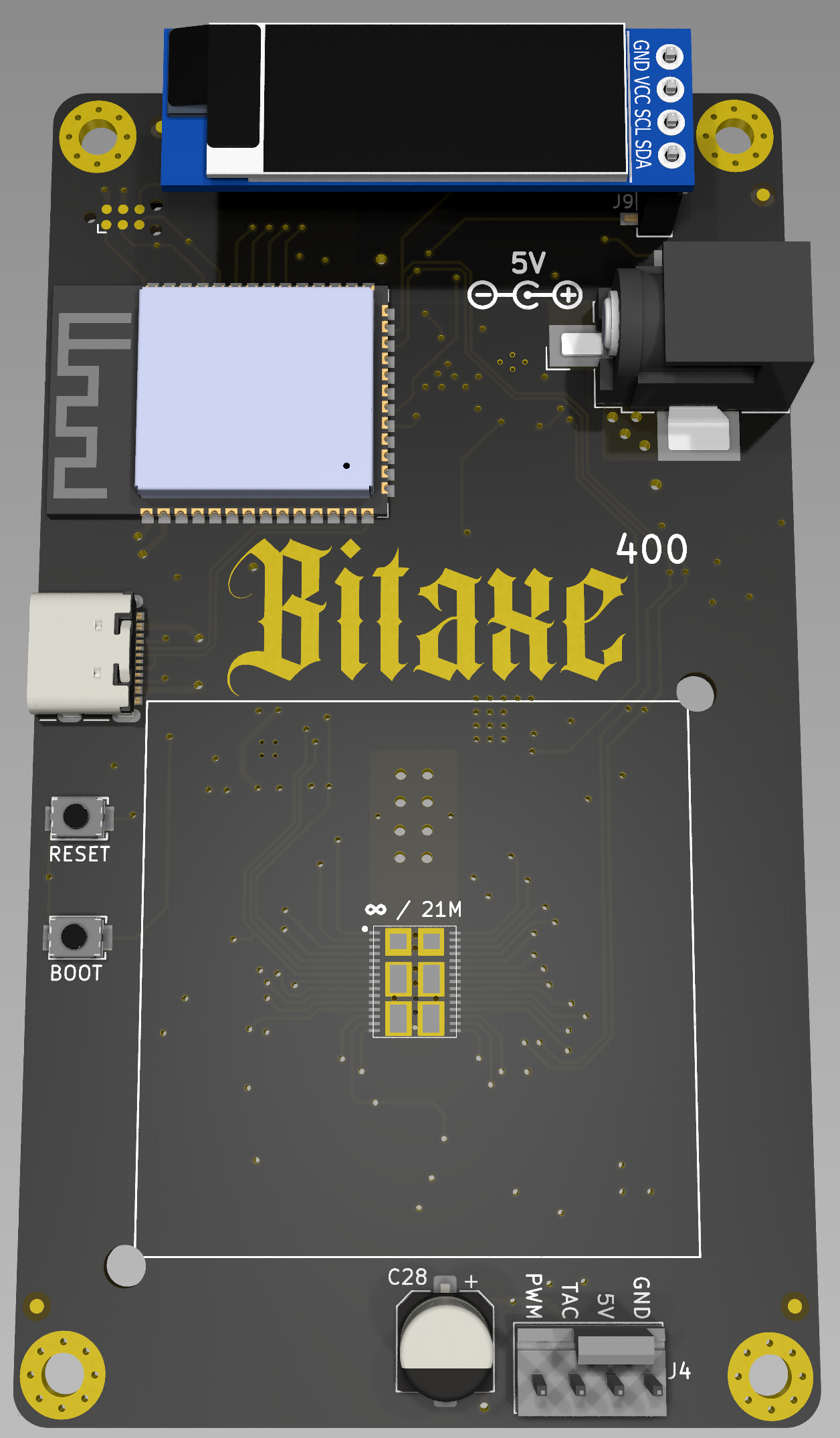

BitaxeSupra is an open source ESP32 PCB design by bitaxeorg, published on GitHub under the CERN-OHL-S-2.0 license. It is a 4-layer board measuring 56.5 × 99.8 mm, with 89 components from 41 distinct parts.
Its main chip is the ESP32-S3-WROOM-1, from the ESP32 family. Other key parts include the TPS546D24ARVFR, RT9080-33GJ5, MCP1824T-1202E/OT, MCP1824T-0802E and 25MHZ. By type, the board carries 53 capacitors, 19 resistors, 9 ICs, 5 connectors, 2 switches and 1 inductor.
It belongs with the displays & leds, iot & wireless and power & battery designs in this gallery.
From the project
bitaxe based on the BM1368 ASIC from the Antminer S21
Main components on the BitaxeSupra
BitaxeSupra bill of materials (BOM)
89 components, 41 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TPS546D24ARVFR | LQFN40-CLIP | U2 |
| 1 | RT9080-33GJ5 | RT9080-33GJ5 | U3 |
| 1 | ESP32-S3-WROOM-1 | ESP32-S3-WROOM-1 | U4 |
| 1 | MCP1824T-1202E/OT | SOT-23-5 | U5 |
| 1 | MCP1824T-0802E | SOT-23-5 | U6 |
| 1 | 25MHZ 25MHz | SMD3225-4P | U7 |
| 1 | BM1368_MODE1 BM1368_mode1 | BM1368 | U8 |
| 1 | SN74AVC4T774 | TSSOP-16_4.4x5mm_P0.65mm | U9 |
| 1 | EMC2101 | TSSOP-8_3x3mm_P0.65mm | U10 |
| 1 | 54-00164 | TENSILITY_54-00164 | J1 |
| 1 | CONN_01X04 Conn_01x04 | PinHeader_1x04_P2.54mm_Vertical_shifted | J3 |
| 1 | USB_C_RECEPTACLE_USB2.0 USB_C_Receptacle_USB2.0 | USB_C_Receptacle_GCT_USB4105-xx-A | J5 |
| 1 | CONN_01X04 Conn_01x04 | 470531000 | J6 |
| 1 | CONN_01X04 Conn_01x04 | JST_SH_BM04B-SRSS-TB_1x04-1MP_P1.00mm_Vertical | J7 |
| 2 | GT-TC029B-H025-L1N | SW_CS1213AGF260_CRS | SW1, SW2 |
| 1 | 300NH 300nH | SLC1175 | L1 |
| 24 | 1UF 1uF | C_0402_1005Metric | C1, C5, C7, C21, C22, C23, C26, C27 +16 |
| 2 | 10UF 10uF | C_0805_2012Metric | C2, C24 |
| 3 | 47UF 47uF | C_1210_3225Metric | C3, C4, C51 |
| 1 | 4700PF 4700pF | C_0402_1005Metric | C6 |
Show 21 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 10 | 0.1UF 0.1uF | C_0402_1005Metric | C8, C12, C25, C29, C37, C38, C47, C49 +2 |
| 1 | 2200PF 2200pF | C_0402_1005Metric | C9 |
| 1 | 4.7UF 4.7uF | C_0402_1005Metric | C10 |
| 1 | 1000PF 1000pF | C_0805_2012Metric | C11 |
| 1 | 100PF 100pF | C_0402_1005Metric | C13 |
| 3 | 22UF 22uF | C_0805_2012Metric | C14, C15, C16 |
| 5 | 100UF 100uF | C_1206_3216Metric | C17, C18, C19, C20, C43 |
| 1 | 470PF 470pF | C_0402_1005Metric | C50 |
| 1 | 8.25K 8.25k | R_0402_1005Metric | R1 |
| 1 | 14.7K 14.7k | R_0402_1005Metric | R5 |
| 1 | 0 | R_0402_1005Metric | R6 |
| 1 | 3.74K 3.74k | R_0402_1005Metric | R8 |
| 1 | 11.8K 11.8k | R_0402_1005Metric | R9 |
| 1 | 68.1K 68.1k | R_0402_1005Metric | R10 |
| 1 | 10 | R_0402_1005Metric | R11 |
| 1 | 1 | R_1206_3216Metric | R12 |
| 2 | 49.9 | R_0402_1005Metric | R13, R14 |
| 4 | 10K 10k | R_0402_1005Metric | R15, R16, R17, R25 |
| 2 | 1k | R_0402_1005Metric | R18, R19 |
| 2 | 100 | R_0402_1005Metric | R22, R23 |
| 1 | 5.6K 5.6k | R_0402_1005Metric | R24 |
BitaxeSupra design files
The KiCad project lives in the bitaxeorg/bitaxeSupra repository on GitHub; these links point at the commit this page was built from.
BitaxeSupra: common questions
What microcontroller does the BitaxeSupra use?
The BitaxeSupra is built around the ESP32-S3-WROOM-1, from the ESP32 family.
How big is the BitaxeSupra PCB?
The BitaxeSupra measures 56.5 × 99.8 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the BitaxeSupra?
89 components, from 41 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the BitaxeSupra design files?
From the bitaxeorg/bitaxeSupra repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the BitaxeSupra design in my own project?
Yes, under the terms of its CERN-OHL-S-2.0 license, which bitaxeorg chose for the repository.
Can I test firmware for the BitaxeSupra without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
