BitaxeUltra
About the BitaxeUltra PCB
BitaxeUltra is an open source ESP32 PCB design by bitaxeorg, published on GitHub under the CERN-OHL-S-2.0 license. It is a 4-layer board measuring 56.5 × 99.8 mm, with 85 components from 44 distinct parts.
Its main chip is the ESP32-S3-WROOM-1, from the ESP32 family. Other key parts include the 25MHZ, TXB0104RGYR, MCP1824T-1802E, MCP1824T-0802E and EMC2101. By type, the board carries 48 capacitors, 15 resistors, 11 ICs, 4 connectors, 3 transistors and 2 switches.
It belongs with the iot & wireless, displays & leds and power & battery designs in this gallery.
From the project

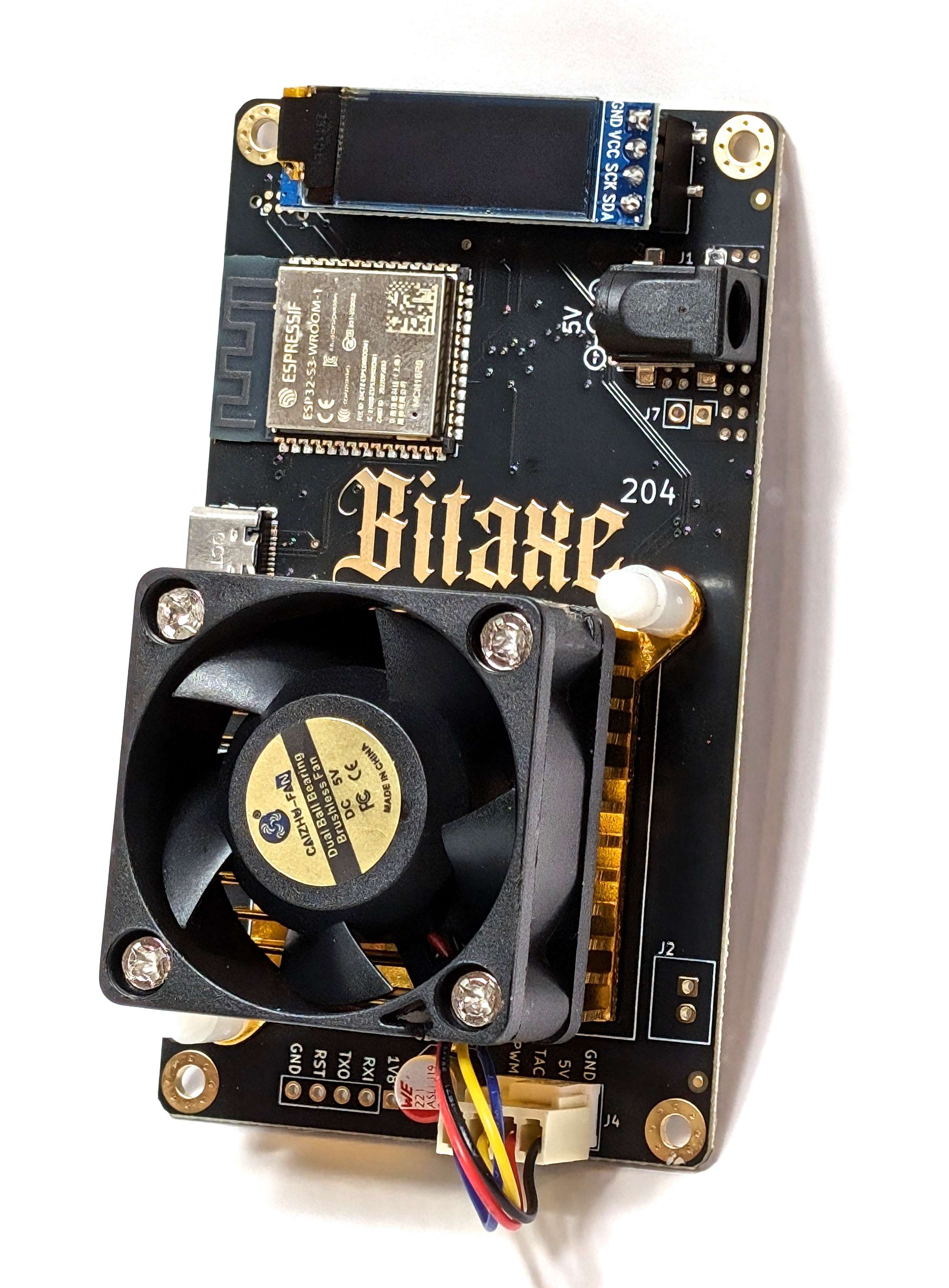

bitaxe based on the BM1366 ASIC from the Antminer S19 XP
Main components on the BitaxeUltra
BitaxeUltra bill of materials (BOM)
85 components, 44 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 25MHZ 25MHz | O 25,0-JO32-B-1V3-1-T1-LF | U1 |
| 1 | TXB0104RGYR | TXB0104 | U2 |
| 1 | MCP1824T-1802E | SOT-23-5 | U5 |
| 1 | MCP1824T-0802E | SOT-23-5 | U6 |
| 1 | EMC2101 | TSSOP-8_3x3mm_P0.65mm | U7 |
| 1 | INA260 | TSSOP-16_4.4x5mm_P0.65mm | U8 |
| 1 | TPS40305 | TPS40305 | U9 |
| 1 | DS4432U+ | TSSOP-8_3x3mm_P0.65mm | U10 |
| 1 | RT9080-33GJ5 | RT9080-33GJ5 | U11 |
| 1 | ESP32-S3-WROOM-1 | ESP32-S3-WROOM-1 | U12 |
| 1 | BM1366_MODE1 BM1366_mode1 | BM1366 | U14 |
| 2 | CSD17311Q5 | CSD17311Q5 | Q1, Q2 |
| 1 | 2N7002K | SOT-323_SC-70 | Q4 |
| 1 | 32.768kHz | SC32S-7PF20PPM | Y1 |
| 1 | PJ-036AH-SMT | BarrelJack_CUI_PJ-036AH-SMT_Horizontal | J1 |
| 1 | CONN_01X04 Conn_01x04 | 470531000 | J4 |
| 1 | USB_C_RECEPTACLE_USB2.0 USB_C_Receptacle_USB2.0 | USB_C_Receptacle_GCT_USB4105-xx-A_16P_TopMnt_Horizontal | J8 |
| 1 | CONN_01X04 Conn_01x04 | PinHeader_1x04_P2.54mm_Vertical_shifted | J9 |
| 2 | GT-TC029B-H025-L1N | SW_CS1213AGF260_CRS | SW1, SW2 |
| 1 | 150NH 150nH | FP1005R1-R15-R | L1 |
Show 24 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 9 | 0.1UF 0.1uF | C_0402_1005Metric | C1, C7, C9, C19, C20, C29, C33, C42 +1 |
| 23 | 1UF 1uF | C_0402_1005Metric | C2, C3, C4, C5, C6, C8, C10, C11 +15 |
| 1 | 330UF 330uF | CP_EIA-7343-31_Kemet-D_Pad2.25x2.55mm_HandSolder | C13 |
| 1 | 220UF 220uF | CP_Elec_6.3x7.7 | C28 |
| 2 | 6.8pF | C_0402_1005Metric | C30, C31 |
| 3 | 47UF 47uF | C_1210_3225Metric | C34, C36, C37 |
| 1 | 1UF 1uF | C_0805_2012Metric | C38 |
| 1 | 3.3NF 3.3nF | C_0402_1005Metric | C39 |
| 1 | 180PF 180pF | C_0805_2012Metric | C40 |
| 1 | 1.5NF 1.5nF | C_0805_2012Metric | C41 |
| 2 | 10UF 10uF | C_0805_2012Metric | C43, C51 |
| 1 | 470PF 470pF | C_0805_2012Metric | C45 |
| 1 | 220UF 220uF | CAP_2R5TPE220MAFB | C46 |
| 1 | 100UF 100uF | C_1206_3216Metric | C47 |
| 5 | 10K 10k | R_0402_1005Metric | R1, R4, R6, R7, R9 |
| 1 | 5.6K 5.6k | R_0402_1005Metric | R2 |
| 2 | 5.1K 5.1k | R_0402_1005Metric | R3, R5 |
| 1 | 1M | R_0402_1005Metric | R8 |
| 1 | 3.83K 3.83k | R_0402_1005Metric | R10 |
| 1 | 4.12K 4.12k | R_0402_1005Metric | R12 |
| 1 | 1.33K 1.33k | R_0402_1005Metric | R13 |
| 1 | 4.99K 4.99k | R_0402_1005Metric | R14 |
| 1 | 3.32K 3.32k | R_0402_1005Metric | R15 |
| 1 | 80.6K 80.6k | R_0402_1005Metric | R16 |
BitaxeUltra design files
The KiCad project lives in the bitaxeorg/bitaxeUltra repository on GitHub; these links point at the commit this page was built from.
BitaxeUltra: common questions
What microcontroller does the BitaxeUltra use?
The BitaxeUltra is built around the ESP32-S3-WROOM-1, from the ESP32 family.
How big is the BitaxeUltra PCB?
The BitaxeUltra measures 56.5 × 99.8 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the BitaxeUltra?
85 components, from 44 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the BitaxeUltra design files?
From the bitaxeorg/bitaxeUltra repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the BitaxeUltra design in my own project?
Yes, under the terms of its CERN-OHL-S-2.0 license, which bitaxeorg chose for the repository.
Can I test firmware for the BitaxeUltra without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
