Zpn devboard PCB layout, top view — open source RP2040/RP2350 board by CRImier
Simulate this board

About the Zpn devboard PCB

Zpn devboard is an open source RP2040/RP2350 PCB design by CRImier, published on GitHub under the GPL-3.0 license. It is a 4-layer board measuring 100 × 100 mm, with 160 components from 75 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the SL2.1A, AP1117-33, W25Q32JVSS, 74HC595 and AP2112K-3.3. By type, the board carries 63 resistors, 43 capacitors, 21 connectors, 19 ICs, 4 diodes and 3 transistors.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

My KiCad boards. Can't be bothered uploading individually anymore, so here you go.

- This board is untested and there's no guarantees of fitness. - I recommend a stencil for assembling this board.

- Software: Kicad 8 - Version: 0 - PCB size: 100x100 - Layer count: 2 - Recommended thickness: 1.6mm

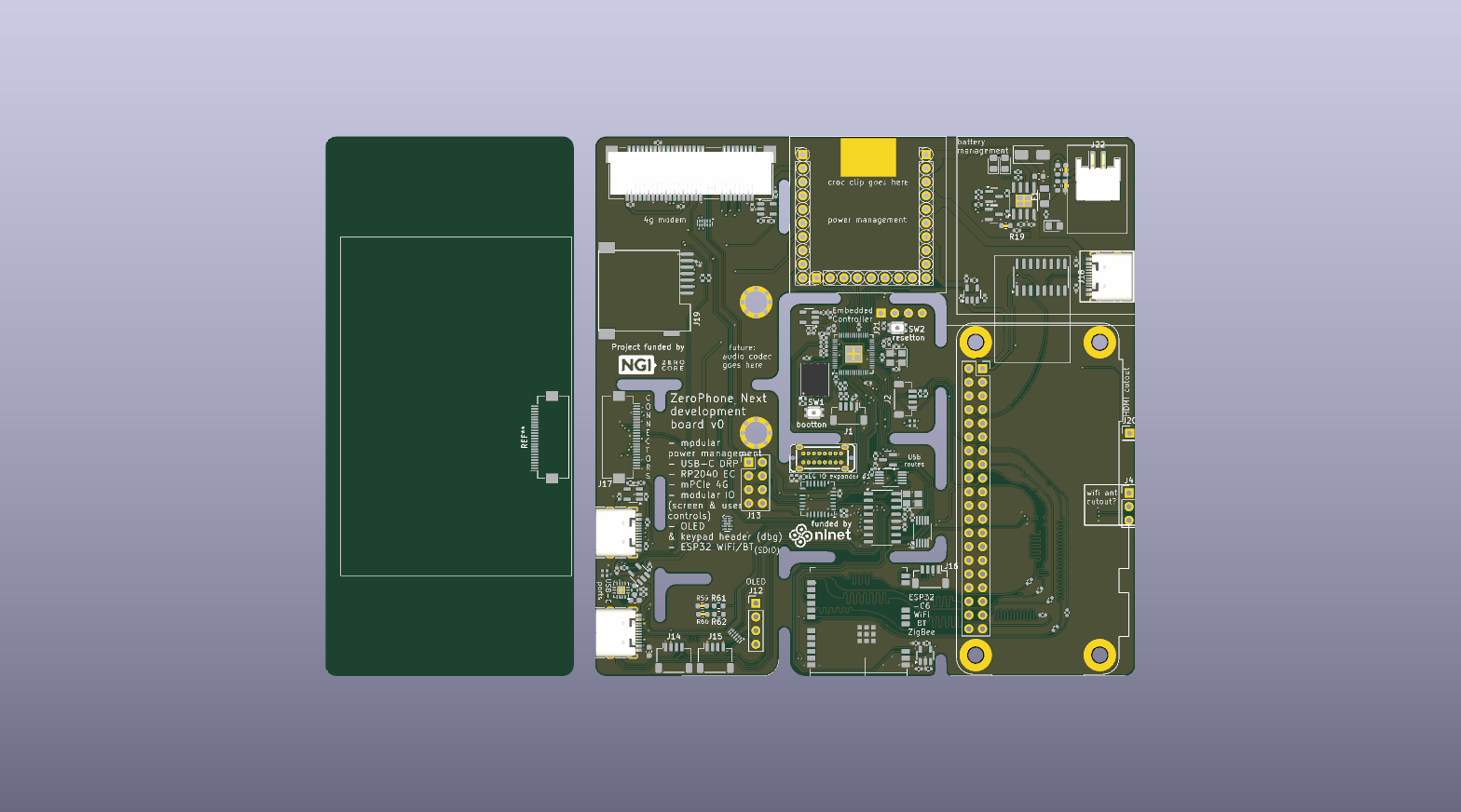

Zpn devboard, from the project README
From the project README

Main components on the Zpn devboard

Zpn devboard bill of materials (BOM)

160 components, 75 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
SL2.1A
FSUSB42MUX
U1
1
AP1117-33
W25Q128JVS
U2
1
W25Q32JVSS
CH340C
U3
1
RP2040
TP4056
U4
1
74HC595
FSUSB42MUX
U5
1
RP2040
U6
1
AP2112K-3.3
U7
3
TPD4E02B04DQA
U8, U18, U19
1
SL2.1A
U10
5
SY6280
U11, U15, U16, U17, U20
1
MCP23S17_ML
U12
1
FUSB302BMPX
U13
1
ESP32-C6-WROOM-1
U14
1
BC817
BSS138
Q1
1
CJ2305
BSS138
Q2
1
BSS138
Q3
2
12MHZ
12MHz
Y1, Y2
2
SH 4P
J1, J16
1
USB_C_RECEPTACLE_USB2.0
SH 4P
J2
1
USB
J4
Show 55 more
QtyPartRefs
1
USB_C_Receptacle_USB2.0_16P
J5
1
USB_C_Host_a
J6
1
Bus_PCI_Express_Mini
J7
2
USB_C_Receptacle_USB2.0_16P
J8, J18
1
l
J9
1
b
J10
1
r
J11
1
Sn
J12
1
KP
J13
2
SH 4P
J14, J15
1
FPC 24P 0.5mm
J17
1
SIM_Card
J19
1
Conn_01x01
J20
1
Conn_01x04
J21
1
Battery
J22
1
2A PTC
F1
2
SK6805
N1, N2
1
bootton
SW1
1
resetton
SW2
3
LED 0603
D1, D2, D3
1
SS34
D4
1
100NF
1uF
C1
1
100NF
10uF
C2
11
100NF
100nF
C3, C4, C6, C7, C9, C10, C13, C14 +3
1
1UF
100nF
C12
1
1UF
1uF
C16
2
18PF
100nF
C19, C20
7
100nF
C21, C22, C29, C30, C31, C34, C48
15
1uF
C23, C24, C32, C33, C37, C38, C39, C40 +7
2
15pF
C27, C28
2
100p
C35, C36
3
5K1
5.1K
R1, R22, R31
1
C17477
5.1K
R2
1
5K1
56K
R3
3
C21189
1.8K
R4, R7, R9
2
C21189
100K
R5, R6
2
C21189
5.1K
R8, R23
2
C21189
27
R10, R11
5
1.8K
R12, R14, R15, R20, R53
1
C17477
1.8K
R13
9
47R
R16, R17, R18, R43, R44, R45, R46, R47 +1
1
5K1
NP
R19
1
5K1
0R
R21
2
NP
R24, R27
4
0R
R25, R26, R59, R60
1
22R
1.8K
R28
5
12K
R32, R51, R55, R57, R63
5
20K
R33, R52, R56, R58, R64
1
100K
R34
6
5.1K
R35, R38, R49, R50, R65, R67
2
27
R36, R37
1
0R
R39
1
0R
R40
2
56K
R41, R42
2
NC
R61, R62

Zpn devboard design files

The KiCad project lives in the CRImier/MyKiCad repository on GitHub; these links point at the commit this page was built from.

Zpn devboard: common questions

What microcontroller does the Zpn devboard use?

The Zpn devboard is built around the RP2040, from the RP2040/RP2350 family.

How big is the Zpn devboard PCB?

The Zpn devboard measures 100 × 100 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Zpn devboard?

160 components, from 75 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Zpn devboard design files?

From the CRImier/MyKiCad repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Zpn devboard design in my own project?

Yes, under the terms of its GPL-3.0 license, which CRImier chose for the repository.

Can I test firmware for the Zpn devboard without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
