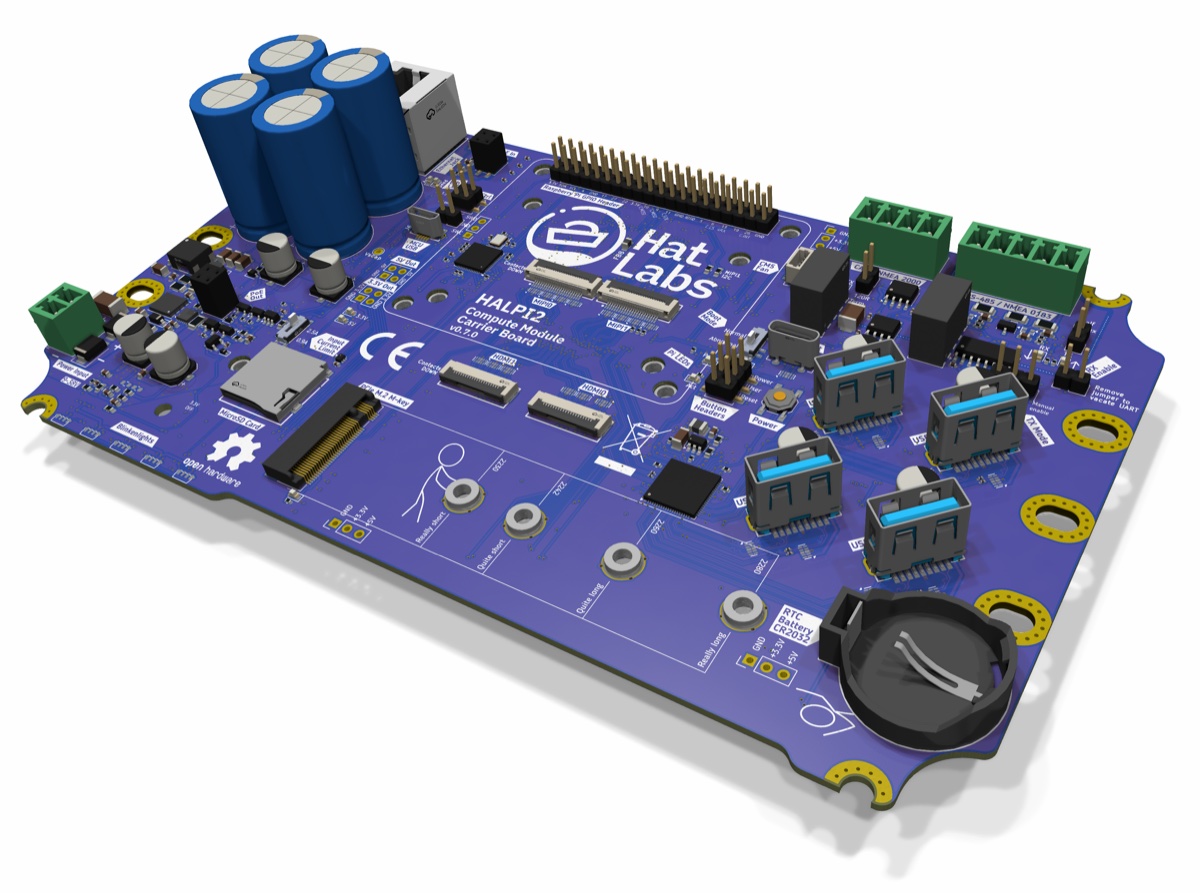

HALPI2-hardware
About the HALPI2-hardware PCB
HALPI2-hardware is an open source RP2040/RP2350 PCB design by hatlabs, published on GitHub under the Custom license license. It is a 6-layer board measuring 187 × 109 mm, with 541 components from 184 distinct parts.
Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the LM74800, LMV324, 74LVC1GU04, TPS566238PRQFR and W25Q32JVUUIQ. By type, the board carries 189 capacitors, 154 resistors, 53 ICs, 45 diodes, 28 connectors and 18 inductors.
It belongs with the dev boards & breakouts and displays & leds designs in this gallery.
From the project
Hat Labs Pi Carrier Board 2 design files
Raspberry Pi Compute Module 5 carrier board designed for marine and industrial embedded applications.
- Power management — Supercapacitor-backed power supply with graceful shutdown on power loss - RP2040 control MCU — Manages power sequencing, watchdog, and system monitoring - CAN bus — Isolated NMEA 2000 / CAN 2.0B interface - RS-485 — Isolated serial interface - USB — USB 2.0 and USB 3.0 with onboard hub - Ethernet — Gigabit Ethernet - HDMI — Full-size HDMI output via FPC connection - PCIe / NVMe — M.2 slot for NVMe storage - DSI display — MIPI DSI connector for touchscreen displays -…
Main components on the HALPI2-hardware
HALPI2-hardware bill of materials (BOM)
541 components, 184 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LM74800 | WSON-12-1EP_3x3mm_P0.5mm_EP1.5x2.5mm | U1 |
| 1 | LMV324 | SOIC-14_3.9x8.7mm_P1.27mm | U2 |
| 2 | 74LVC1GU04 | SOT-353_SC-70-5 | U3, U4 |
| 2 | TPS566238PRQFR | RQF0009A | U6, U7 |
| 1 | W25Q32JVUUIQ | WSON-8-1EP_6x5mm_P1.27mm_EP3.4x4.3mm | U8 |
| 1 | RP2040 | QFN-56-1EP_7x7mm_P0.4mm_EP3.2x3.2mm | U9 |
| 1 | SE8633K2-HF | SOT-89-3 | U10 |
| 25 | RCLAMP0524P | Diodes_UDFN-10_1.0x2.5mm_P0.5mm | U11, U12, U13, U14, U15, U16, U17, U18 +17 |
| 3 | AP2553W6-7 | SOT-23-6 | U19, U23, U42 |
| 4 | AP22652W6-7 | SOT-23-6 | U29, U33, U36, U39 |
| 1 | UPD720210K8-BAF-A | QFN-76-1EP_9x9mm_P0.4mm_EP3.8x3.8mm | U32 |
| 1 | MCP2518FD-xQBB | DFN-14-1EP_3x4.5mm_P0.65mm_EP1.65x4.25mm | U44 |
| 1 | ISO7721DR | SOIC-8_3.9x4.9mm_P1.27mm | U45 |
| 1 | TCAN1044A-Q1 | SOIC-8_3.9x4.9mm_P1.27mm | U46 |
| 1 | π141M31 | SOIC-16_3.9x9.9mm_P1.27mm | U47 |
| 2 | SP3485EN-L/TR | SOIC-8_3.9x4.9mm_P1.27mm | U48, U49 |
| 1 | COS1333TR | SOT-23-5 | U50 |
| 2 | LMV321-TR | SOT-23-5 | U51, U55 |
| 1 | SIC463ED-T1-GE3 | QFN_61ED-T1-GE3_VIS | U52 |
| 1 | TMP112AIDRL | SOT-563 | U53 |
Show 164 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | WSD46N10DN56 | DFN5x6-8L | Q1 |
| 1 | YJQ1216A | DFN2020-6L | Q3 |
| 3 | MMBT5551 | SOT-23 | Q7, Q10, Q11 |
| 1 | QS6M4 | SOT-23-6 | Q8 |
| 1 | 2N7002 | SOT-23 | Q9 |
| 1 | LBSS84LT1G | SOT-23 | Q12 |
| 4 | FMMT617 | SOT-23 | Q13, Q14, Q15, Q16 |
| 1 | 40MHz | Crystal_SMD_3225-4Pin_3.2x2.5mm | X1 |
| 1 | ABM8-272-T3 | Crystal_SMD_3225-4Pin_3.2x2.5mm | Y1 |
| 1 | 24MHz | Crystal_SMD_3225-4Pin_3.2x2.5mm | Y2 |
| 1 | X1A000061000200 | Crystal_SMD_2012-2Pin_2.0x1.2mm | Y801 |
| 1 | Conn_01x02 | PhoenixContact_MCV_1,5_2-G-3.81_1x02_P3.81mm_Vertical | J1 |
| 1 | PoE HAT Vout | PinSocket_2x02_P2.54mm_Vertical | J2 |
| 1 | 5V Header | PinHeader_2x02_P2.54mm_Vertical | J3 |
| 1 | 3.3V Header | PinHeader_2x02_P2.54mm_Vertical | J4 |
| 1 | Conn_02x03_Odd_Even | PinHeader_2x03_P2.54mm_Vertical_SMD | J5 |
| 1 | USB_B_Micro | MICRO-USB-SMD_920-154A2021Y10109 | J6 |
| 1 | Conn_02x02_Odd_Even | PinHeader_2x02_P2.54mm_Vertical_SMD | J7 |
| 1 | CM4/5 Module A | Hirose_DF40_DF40C-100DS-0.4V_2x50_P0.40mm_Vertical | J10 |
| 1 | GPIO | PinHeader_2x20_P2.54mm_Vertical | J11 |
| 2 | HC-1.0-4PLT | JST_SH_HCTL_HC-1.0-4PLT_1x04-1MP_P1.00mm_Vertical | J12, J13 |
| 1 | CM4/5 Module B | Hirose_DF40_DF40C-100DS-0.4V_2x50+100_P0.40mm_Vertical | J14 |
| 2 | FFC-22p-P0.5mm | FPC-SMD_22P-P0.50_XUNPU_FPC-05F-22PH20_REV_Horizontal | J15, J16 |
| 2 | FPC0.5-SMT-20P | FPC-SMD_20P-P0.50_XUNPU_FPC-05F-20PH20_Horizontal | J17, J18 |
| 1 | X05ADGWA3DY1027 | RJ45-TH_XKB_X05ADGWA3DY1027 | J19 |
| 1 | PoE | PinSocket_2x02_P2.54mm_Vertical_SMD | J20 |
| 4 | USB3_A | USB3.0-A-SMD_916-862A205EY10200 | J21, J22, J23, J24 |
| 1 | Bus_M.2_Socket_M | M.2_M-Key_Socket | J25 |
| 1 | Micro_SD_Card_Det | MicroSD_SHOU-HAN_TF-PUSH | J26 |
| 1 | USB_C_Receptacle_USB2.0 | USB_TYPE-C_SHOU-HAN_16PLT-H6.8 | J27 |
| 1 | Conn_01x04 | PhoenixContact_MCV_1,5_4-G-3.81_1x04_P3.81mm_Vertical | J28 |
| 1 | RS485 Socket | PhoenixContact_MCV_1,5_5-G-3.81_1x05_P3.81mm_Vertical | J29 |
| 1 | Conn_01x02 | PinHeader_1x02_P2.54mm_Vertical | J32 |
| 1 | BS-02-A1AJ010 | BatteryHolder-TH_BS-02-A1AJ010 | BT1 |
| 1 | 0451005.MRL | Fuse_Littelfuse-NANO2-451_453 | F1 |
| 4 | nSMD005/60V | Fuse_1206_3216Metric | F2, F3, F4, F5 |
| 3 | PCAQ2012B-201T030 | L_CommonModeChoke_PCAQ2012B | FL1, FL2, FL3 |
| 9 | SMTSO2515CTJ | SMTSO2515CTJ | H3, H4, H5, H6, H17, H18, H19, H20 +1 |
| 4 | SMTSO2530CTJ | SMTSO2515CTJ | H22, H23, H24, H25 |
| 2 | Jumper_2_Open | PinHeader_1x02_P2.54mm_Vertical | JP1, JP4 |
| 1 | Jumper_3_Bridged12 | PinHeader_1x03_P2.54mm_Vertical_SMD_Pin1Left | JP2 |
| 1 | Jumper_2_Bridged | PinHeader_1x02_P2.54mm_Vertical | JP3 |
| 2 | B0505S-1WR3 | SIP-4_L11.7-W6.0-P2.54_B0305S-1WR3 | PS1, PS2 |
| 1 | SW_Push | SW_SPST_TL3342 | SW1 |
| 2 | MSS12C02LS-HB2.0 | SW-SMD_MSS12C02LS-HB2.0-1 | SW2, SW4 |
| 1 | TestPoint | TestPoint_THTPad_D2.0mm_Drill1.0mm | TP7 |
| 1 | G2415S | Transformer_Ethernet_YDS_30F-51NL_SO-24_7.1x15.1mm | TR1 |
| 5 | SK6805SIDE-G-003 | LED-SMD_4P-L3.5-W1.55_SK6805SIDE-G | LED1, LED2, LED3, LED4, LED5 |
| 1 | SMBJ58A | D_SMB | D1 |
| 1 | SMBJ28A | D_SMB | D2 |
| 1 | MM1Z62 | D_SOD-123 | D3 |
| 1 | 1N4148WS | D_SOD-323_HandSoldering | D4 |
| 4 | B5819W | D_SOD-123 | D5, D6, D7, D8 |
| 5 | ESD5451N | D_0402_1005Metric | D9, D10, D11, D18, D19 |
| 5 | 1N5819WS | D_SOD-323 | D12, D14, D15, D44, D45 |
| 4 | 1N4148WT | D_SOD-523 | D13, D16, D23, D38 |
| 2 | YELLOW LED | LED_0603_1608Metric | D17, D21 |
| 6 | GREEN LED | LED_0603_1608Metric | D20, D28, D30, D35, D36, D40 |
| 4 | BAT54C,215 | SOT-23 | D22, D24, D25, D26 |
| 1 | BLUE LED | LED_0603_1608Metric | D27 |
| 1 | SM24CANB | SOT-23 | D29 |
| 2 | SM712_SOT23 | SOT-23 | D31, D32 |
| 2 | SMAJ16CA | D_SMA | D33, D34 |
| 1 | BZX584C3V3 | D_SOD-523 | D37 |
| 3 | RED LED | LED_0603_1608Metric | D39, D41, D43 |
| 1 | LM3Z4V7T1G | D_SOD-323 | D42 |
| 2 | HCB3216KF-121T60 | R_1206_3216Metric | FB1, FB2 |
| 6 | BLM21PG600SN1 | L_0805_2012Metric | FB3, FB4, FB5, FB6, FB7, FB8 |
| 1 | FXL0420-1R5-M | L_MWSA0402 | L1 |
| 1 | PCAQ7060MW-102 | FILTER-SMD_4P-L7.0-W6.0-TL-A | L2 |
| 2 | APH0630T2R2M | L_Chilisin_BMRx00060630 | L3, L4 |
| 1 | 4.7uH | L_1008_2520Metric | L5 |
| 4 | CMH201209B4R7MT | L_0805_2012Metric | L6, L7, L8, L9 |
| 1 | FXL1040-6R8-M | L_Changjiang_FXL1040 | L10 |
| 1 | 100nF/100V | C_0805_2012Metric | C1 |
| 4 | 1uF | C_0603_1608Metric | C2, C14, C54, C182 |
| 8 | 1uF/50V | C_0603_1608Metric | C3, C4, C5, C6, C8, C53, C173, C174 |
| 7 | 10uF/50V | C_1206_3216Metric | C7, C9, C10, C11, C12, C13, C172 |
| 4 | HT-2R7-J256VYJ21 | CP_Radial_D16.0mm_P7.50mm | C15, C17, C19, C21 |
| 53 | 1uF | C_0402_1005Metric | C16, C23, C24, C26, C31, C32, C34, C41 +45 |
| 1 | 100pF C0G | C_0603_1608Metric | C18 |
| 2 | 10uF | C_1206_3216Metric | C22, C30 |
| 3 | 100nF | C_0603_1608Metric | C25, C33, C168 |
| 16 | 10uF | C_0805_2012Metric | C27, C35, C65, C67, C68, C70, C80, C86 +8 |
| 3 | 220uF/16V | CP_Elec_6.3x7.7 | C28, C36, C183 |
| 2 | 33pF | C_0402_1005Metric | C29, C37 |
| 2 | 1nF | C_0402_1005Metric | C38, C188 |
| 2 | 15p | C_0402_1005Metric | C39, C40 |
| 6 | 10uF | C_0603_1608Metric | C46, C47, C52, C55, C63, C64 |
| 5 | 100nF | C_0402_1005Metric | C71, C72, C73, C74, C177 |
| 4 | 22nF/100V | C_0603_1608Metric | C75, C76, C78, C79 |
| 1 | 1nF/2kV | C_1206_3216Metric | C77 |
| 4 | 220uF | CP_Elec_6.3x7.7 | C81, C122, C126, C130 |
| 27 | 100nF | C_0201_0603Metric | C82, C83, C92, C93, C94, C95, C96, C97 +19 |
| 13 | 4.7uF | C_0603_1608Metric | C84, C90, C91, C144, C146, C148, C150, C154 +5 |
| 1 | 22uF | C_1206_3216Metric | C85 |
| 4 | 12pF | C_0402_1005Metric | C87, C88, C141, C142 |
| 2 | 1nF/X1,Y2 | C_1808_4520Metric | C147, C157 |
| 6 | 100pF | C_0603_1608Metric | C152, C153, C162, C163, C164, C165 |
| 1 | 47uF/50V | CP_Elec_6.3x7.7 | C170 |
| 1 | 2.2uF | C_0603_1608Metric | C176 |
| 1 | 3.3nF | C_0603_1608Metric | C178 |
| 1 | 10nF | C_0603_1608Metric | C179 |
| 2 | 1nF | C_0603_1608Metric | C180, C189 |
| 1 | 2.2nF | C_0603_1608Metric | C181 |
| 1 | 22pF C0G | C_0603_1608Metric | C802 |
| 1 | 10k | R_1206_3216Metric | R1 |
| 2 | 100k | R_0603_1608Metric | R2, R30 |
| 2 | 3.3k | R_0603_1608Metric | R3, R130 |
| 1 | 0.1R | R_1206_3216Metric | R4 |
| 1 | 10m | R_1206_3216Metric | R5 |
| 4 | 33k | R_0603_1608Metric | R6, R11, R16, R21 |
| 12 | 51k | R_0402_1005Metric | R7, R8, R10, R12, R13, R15, R17, R18 +4 |
| 4 | 49.9k | R_0402_1005Metric | R9, R14, R19, R24 |
| 8 | 100k | R_0402_1005Metric | R26, R66, R89, R91, R93, R112, R131, R151 |
| 13 | 1k | R_0402_1005Metric | R27, R38, R39, R40, R41, R44, R45, R46 +5 |
| 1 | 220k | R_0603_1608Metric | R28 |
| 1 | 30k | R_0603_1608Metric | R29 |
| 1 | 22k | R_0603_1608Metric | R31 |
| 1 | 56k | R_0402_1005Metric | R32 |
| 1 | 24k | R_0402_1005Metric | R33 |
| 1 | 200k | R_0603_1608Metric | R34 |
| 25 | 10k | R_0402_1005Metric | R35, R36, R47, R64, R65, R68, R69, R70 +17 |
| 1 | 18k | R_0603_1608Metric | R37 |
| 2 | 27R | R_0402_1005Metric | R42, R43 |
| 3 | 0R | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R51, R135, R136 |
| 3 | 2k | R_0402_1005Metric | R52, R123, R133 |
| 3 | 2.2k | R_0402_1005Metric | R53, R54, R55 |
| 3 | 49.9k | R_0603_1608Metric | R56, R57, R96 |
| 1 | 2k | R_0603_1608Metric | R58 |
| 4 | 2.7k | R_0603_1608Metric | R59, R97, R132, R134 |
| 4 | 49.9R | R_0402_1005Metric | R60, R61, R62, R63 |
| 4 | 27k | R_0402_1005Metric | R67, R90, R92, R94 |
| 1 | 68R | R_0603_1608Metric | R83 |
| 1 | 56R | R_0603_1608Metric | R84 |
| 1 | 470k | R_0402_1005Metric | R85 |
| 1 | 1.6k | R_0402_1005Metric | R86 |
| 1 | 680R | R_0402_1005Metric | R87 |
| 1 | 15k | R_0402_1005Metric | R88 |
| 2 | 5.1k | R_0402_1005Metric | R98, R99 |
| 5 | 3.3k | R_0402_1005Metric | R100, R101, R104, R110, R111 |
| 1 | 120R | R_0805_2012Metric | R102 |
| 1 | 220R | R_0402_1005Metric | R103 |
| 4 | 10R | R_0402_1005Metric | R106, R107, R108, R109 |
| 1 | 510R | R_0402_1005Metric | R114 |
| 1 | 100R | R_0402_1005Metric | R115 |
| 1 | 10k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R116 |
| 1 | 510k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R117 |
| 1 | 470R | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R118 |
| 1 | 4.7k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R119 |
| 2 | 130k | R_0603_1608Metric | R120, R137 |
| 1 | 4.7k | R_0402_1005Metric | R121 |
| 2 | 68k | R_0603_1608Metric | R124, R126 |
| 1 | 3.3R | R_0402_1005Metric | R125 |
| 1 | 20k | R_0603_1608Metric | R127 |
| 1 | 0R | R_0603_1608Metric | R128 |
| 1 | 39k | R_0603_1608Metric | R129 |
| 1 | 47k | R_0603_1608Metric | R138 |
| 1 | 10k | R_0603_1608Metric | R139 |
| 1 | 6.2k | R_0603_1608Metric | R140 |
| 4 | 560R | R_0603_1608Metric | R141, R142, R143, R144 |
| 4 | 20R | R_1210_3225Metric | R145, R146, R147, R148 |
| 1 | 1M | R_0402_1005Metric | R149 |
| 1 | 330k | R_0603_1608Metric | R150 |
HALPI2-hardware design files
The KiCad project lives in the hatlabs/HALPI2-hardware repository on GitHub; these links point at the commit this page was built from.
- LayoutHALPI2.kicad_pcb
- SchematicHALPI2.kicad_sch
HALPI2-hardware: common questions
What microcontroller does the HALPI2-hardware use?
The HALPI2-hardware is built around the RP2040, from the RP2040/RP2350 family.
How big is the HALPI2-hardware PCB?
The HALPI2-hardware measures 187 × 109 mm, has 6 copper layers and is 1.5584 mm thick.
How many components are on the HALPI2-hardware?
541 components, from 184 distinct parts. The full bill of materials is listed on this page.
Where can I download the HALPI2-hardware design files?
From the hatlabs/HALPI2-hardware repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the HALPI2-hardware design in my own project?
It is published under Custom license, which limits how it may be reused; read the license before building on it.
Can I test firmware for the HALPI2-hardware without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
Similar boards
RP2040/RP2350Open Book Abridged Edition
joeycastillo
85 × 115 mm29 parts2LCC-BY-SA-4.08.1k
RP2040/RP2350Corne
foostan
277.2 × 107.5 mm164 parts2LCC-BY-4.07.7k
RP2040/RP2350Corne
277.2 × 107.5 mm164 parts2LCC-BY-4.07.7k
RP2040/RP2350LogicAnalyzer
gusmanb
57 × 55.2 mm6 parts2LGPL-3.05.0k
RP2040/RP2350Jitx design
55.5 × 65 mm26 parts4LGPL-3.05.0k
RP2040/RP2350Pro V2
kata0510
290.1 × 130 mm270 parts2LMIT2.3k
