Endeavour2
About the Endeavour2 PCB
Endeavour2 is an open source ESP32 PCB design by petrmikheev, published on GitHub under the GPL-3.0 license. It is a 6-layer board measuring 100 × 85 mm, with 263 components from 85 distinct parts.
Its main chip is the ESP32-C3-WROOM-02-N4, from the ESP32 family. Other key parts include the TI60F256, IM8G16D3FFBG, TFP410PAP, W25Q128JWS and FT2232HL. By type, the board carries 101 capacitors, 80 resistors, 29 ICs, 18 diodes, 14 connectors and 8 inductors.
It belongs with the iot & wireless, displays & leds and power & battery designs in this gallery.
From the project
The second generation of the Endeavour FPGA board
This is the second generation of my FPGA board. Comparing to endeavour1 it is 4 times faster and has 8x more memory.

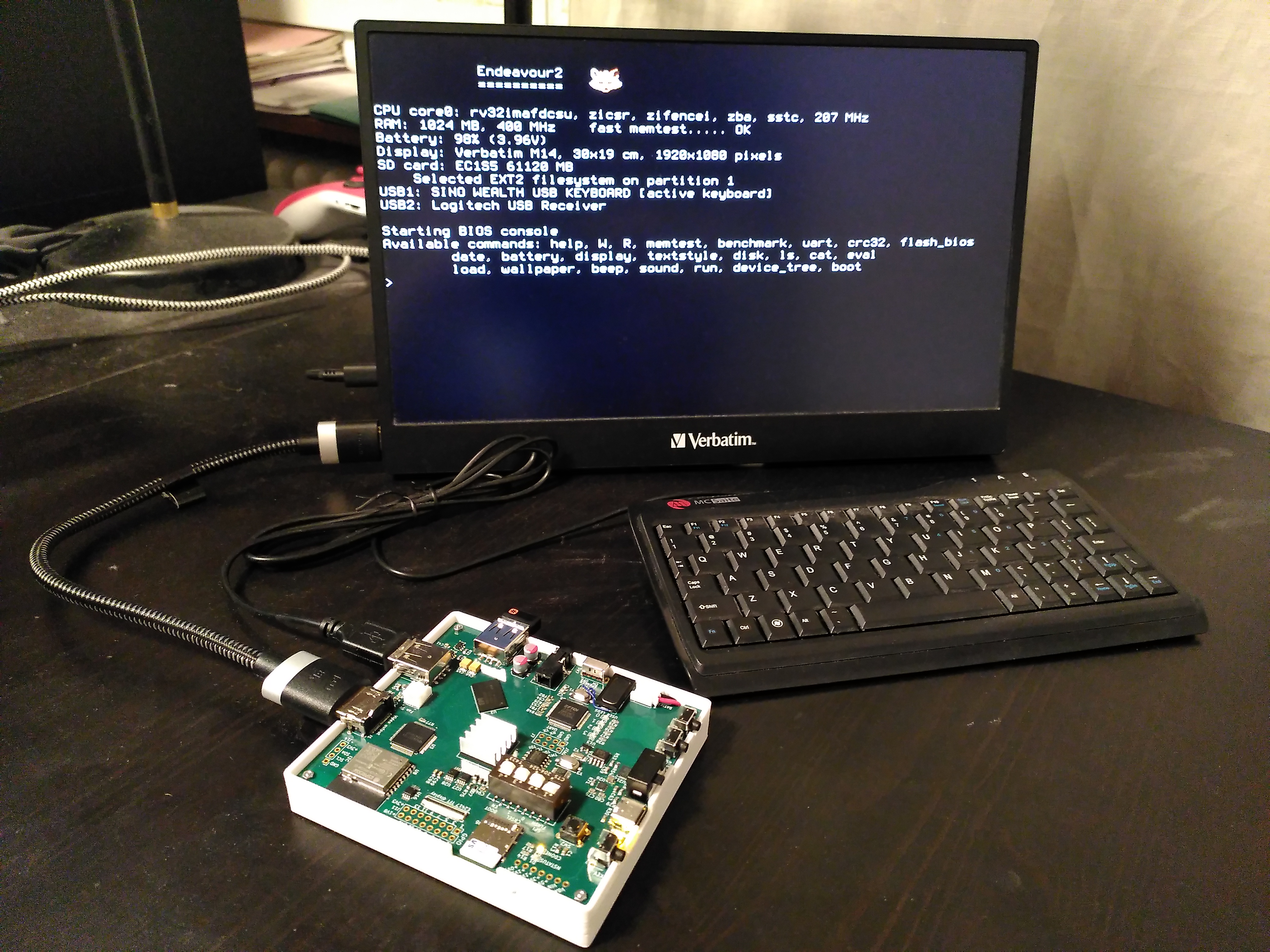

The goal was the same as on the previous iteration -- to make a DIY computer based on FPGA. It should support display, keyboard, should be able to run Linux, should have on-device compiler toolchain, and ideally should be able to render some 3D graphic. It was fully achieved -- I have even managed to connect my board to WiFi and play Quake2 in multiplayer.
Main components on the Endeavour2
Endeavour2 bill of materials (BOM)
263 components, 85 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TI60F256 Ti60F256 | BGA-256_14.0x14.0mm_Layout16x16_P0.8mm_Ball0.45mm_Pad0.32mm_NSMD | U1 |
| 1 | IM8G16D3FFBG | BGA-96_9.0x13.5mm_Layout2x3x16_P0.8mm | U2 |
| 1 | TFP410PAP | IC_TFP410PAP | U3 |
| 1 | W25Q128JWS | SOIC-8_5.23x5.23mm_P1.27mm | U4 |
| 1 | FT2232HL | LQFP-64_10x10mm_P0.5mm | U5 |
| 3 | AP22653W6-7 | SOT26_DIO | U6, U7, U9 |
| 1 | ESP32-C3-WROOM-02-N4 | ESP32-C3-WROOM-02 | U8 |
| 1 | MCP4728 | MSOP-10_3x3mm_P0.5mm | U10 |
| 1 | LM4811 | TSSOP-10_3x3mm_P0.5mm | U11 |
| 1 | PCF85063AT | SOIC-8_3.9x4.9mm_P1.27mm | U12 |
| 1 | MCP3221/MCP3021 | SOT-23-5 | U13 |
| 1 | SI5351A-B-GT Si5351A-B-GT | MSOP-10_3x3mm_P0.5mm | U14 |
| 1 | MC2520Z 25MHz | Oscillator_SMD_Kyocera_KC2520Z-4Pin_2.5x2.0mm | U15 |
| 5 | SN74LVC2T45DCTR | MSOP-8_3x3mm_P0.65mm | U16, U24, U27, U28, U31 |
| 1 | TPS2116DRLR | SOTFL50P160X60-8N | U17 |
| 3 | TPS562211DRLR | DRL0008A-MFG | U18, U19, U20 |
| 1 | MCP73871-2CC | QFN-20-1EP_4x4mm_P0.5mm_EP2.5x2.5mm | U21 |
| 2 | MAX77827AEFD | Maxim_FC2QFN-14_2.5x2.5mm_P0.5mm | U22, U26 |
| 1 | SN74LVC1T45DCK | SOT-363_SC-70-6 | U23 |
| 1 | PCA9306DP | TSSOP-8_3x3mm_P0.65mm | U25 |
Show 65 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Q_NPN_BEC 2SC3326-B,LF | SC-59 | Q1 |
| 1 | SSM3K336R,LF | SOT-23-3 | Q2 |
| 1 | ECS120-20-3XTR 12MHz | XTAL_ECS-120-20-3X-TR | Y1 |
| 1 | CM315D32768HZFT | Crystal_SMD_MicroCrystal_CC7V-T1A-2Pin_3.2x1.5mm_HandSoldering | Y2 |
| 1 | ECS250-20-3XTR 25MHz | XTAL_ECS-120-20-3X-TR | Y3 |
| 1 | HDMI_A | HDMI_A_Amphenol_10029449-x01xLF_Horizontal | J1 |
| 1 | USB_C_RECEPTACLE_USB2.0 USB_C_Receptacle_USB2.0 | USB_C_Receptacle_GCT_USB4105-xx-A_16P_TopMnt_Horizontal | J2 |
| 1 | SJ-3523-SMT | SJ-3523-SMT_CUD | J3 |
| 2 | USB_A | USB_A_Receptacle_GCT_USB1046 | J4, J5 |
| 1 | MICRO_SD_CARD_DET2 Micro_SD_Card_Det2 | microSD_HC_Molex_104031-0811 | J6 |
| 1 | CONN_02X04_ODD_EVEN Conn_02x04_Odd_Even | PinHeader_2x04_P2.54mm_Vertical | J7 |
| 1 | CONN_01X02 Conn_01x02 | PinHeader_1x02_P2.54mm_Vertical | J8 |
| 1 | Battery | JST_PH_S2B-PH-K_1x02_P2.00mm_Horizontal | J9 |
| 1 | CF35242D0RE-NH | CONN24X1_CF35242D0RE-NH_CVI | J10 |
| 1 | Conn_GPIO | PinHeader_2x08_P2.54mm_Vertical | J11 |
| 1 | Fan | JST_PH_S2B-PH-K_1x02_P2.00mm_Horizontal | J12 |
| 1 | power_test_points | PinHeader_1x07_P2.54mm_Vertical | J13 |
| 1 | CONN_01X04_PIN Conn_01x04_Pin | PinHeader_1x04_P2.54mm_Vertical | J14 |
| 1 | 204-124ST | SPDT_204-124_CTS | SW1 |
| 1 | SW_Push TS02 | SW_PUSH_6mm | SW2 |
| 3 | SW_Push TS11 | SW_Tactile_SPST_Angled_PTS645Vx58-2LFS | SW3, SW4, SW6 |
| 1 | SW_SPDT SLW-864587-2A-RA-N-D | SW_Slide_SPDT_Angled_CK_OS102011MA1Q | SW7 |
| 1 | MSS 3111 D-R | mss3111 | SW9 |
| 1 | 10K | R_0603_1608Metric | TH1 |
| 2 | 5988E20107F | LED_0603_1608Metric | D1, D17 |
| 7 | 5988E40107F | LED_0603_1608Metric | D2, D3, D4, D5, D6, D16, D18 |
| 3 | RB751S40T1G | D_SOD-523 | D7, D8, D19 |
| 6 | D_TVS 3v3 | D_0603_1608Metric | D10, D11, D12, D13, D14, D15 |
| 2 | 120 | L_0603_1608Metric | FB1, FB2 |
| 3 | 2.2UH 2.2uH | L_1008_2520Metric | L1, L2, L3 |
| 2 | 1UH 1uH | L_0805_2012Metric | L4, L5 |
| 1 | 10UH 10uH | L_0805_2012Metric | L6 |
| 16 | 1UF 1uF | C_0603_1608Metric | C1, C4, C9, C14, C17, C47, C48, C49 +8 |
| 2 | 27PF 27pF | C_0603_1608Metric | C2, C3 |
| 31 | 0.1UF 0.1uF | C_0603_1608Metric | C5, C19, C20, C21, C22, C25, C26, C29 +23 |
| 2 | 47UF 47uF | C_0603_1608Metric | C6, C16 |
| 11 | 0.01UF 0.01uF | C_0603_1608Metric | C7, C12, C15, C18, C27, C32, C33, C34 +3 |
| 14 | 4.7UF 4.7uF | C_0603_1608Metric | C8, C11, C23, C28, C61, C62, C86, C88 +6 |
| 10 | 10UF 10uF | C_0603_1608Metric | C10, C13, C24, C36, C39, C40, C42, C63 +2 |
| 2 | 100UF 100uF | CP_EIA-3528-12_Kemet-T | C45, C46 |
| 2 | 100UF 100uF | CP_Elec_5x5.3 | C51, C52 |
| 11 | 22UF 22uF | C_0805_2012Metric | C67, C68, C69, C77, C78, C79, C81, C82 +3 |
| 1 | 240 | R_0603_1608Metric | R1 |
| 20 | 10K | R_0603_1608Metric | R2, R3, R4, R6, R7, R8, R9, R10 +12 |
| 2 | 510 | R_0603_1608Metric | R5, R52 |
| 6 | 25 | R_0603_1608Metric | R14, R17, R35, R36, R37, R38 |
| 1 | 100K | R_0603_1608Metric | R15 |
| 12 | 75 | R_0603_1608Metric | R19, R20, R55, R56, R57, R60, R61, R62 +4 |
| 1 | 12K | R_0603_1608Metric | R25 |
| 1 | 100 | R_0603_1608Metric | R26 |
| 2 | 1M | R_0603_1608Metric | R27, R28 |
| 4 | 5.1K | R_0603_1608Metric | R29, R30, R49, R50 |
| 2 | 60K | R_0603_1608Metric | R31, R32 |
| 5 | 15K | R_0603_1608Metric | R33, R34, R43, R44, R54 |
| 6 | 1K | R_0603_1608Metric | R39, R40, R41, R42, R48, R77 |
| 2 | 200K | R_0603_1608Metric | R45, R78 |
| 2 | 1.5K | R_0603_1608Metric | R46, R47 |
| 2 | 560 | R_0603_1608Metric | R51, R70 |
| 3 | 2K | R_0603_1608Metric | R53, R79, R80 |
| 1 | 23.2K | R_0603_1608Metric | R64 |
| 2 | 40.2K | R_0603_1608Metric | R65, R68 |
| 1 | 24.9K | R_0603_1608Metric | R66 |
| 2 | 20K | R_0603_1608Metric | R67, R69 |
| 1 | 4.99K | R_0603_1608Metric | R71 |
| 1 | 0.47 | R_0603_1608Metric | R72 |
Endeavour2 design files
The KiCad project lives in the petrmikheev/endeavour2 repository on GitHub; these links point at the commit this page was built from.
Endeavour2: common questions
What microcontroller does the Endeavour2 use?
The Endeavour2 is built around the ESP32-C3-WROOM-02-N4, from the ESP32 family.
How big is the Endeavour2 PCB?
The Endeavour2 measures 100 × 85 mm, has 6 copper layers and is 1.6 mm thick.
How many components are on the Endeavour2?
263 components, from 85 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Endeavour2 design files?
From the petrmikheev/endeavour2 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Endeavour2 design in my own project?
Yes, under the terms of its GPL-3.0 license, which petrmikheev chose for the repository.
Can I test firmware for the Endeavour2 without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
