Open race v2
About the Open race v2 PCB
Open race v2 is an open source ESP32 PCB design by teehee567, published on GitHub. It is a 8-layer board measuring 90.5 × 49.5 mm, with 329 components from 107 distinct parts.
Its main chip is the ESP32-C6-MINI-1-N4, from the ESP32 family. Other key parts include the AP33772SDKZ-13-FA02, STM32N657X0H3Q, APS512XXN-OB9-BG, TPD8S300ARUKR and IS25WP512M-RHLE. By type, the board carries 163 capacitors, 98 resistors, 22 ICs, 14 diodes, 8 inductors and 7 switches.
It belongs with the rf & radio, iot & wireless and power & battery designs in this gallery.
From the project

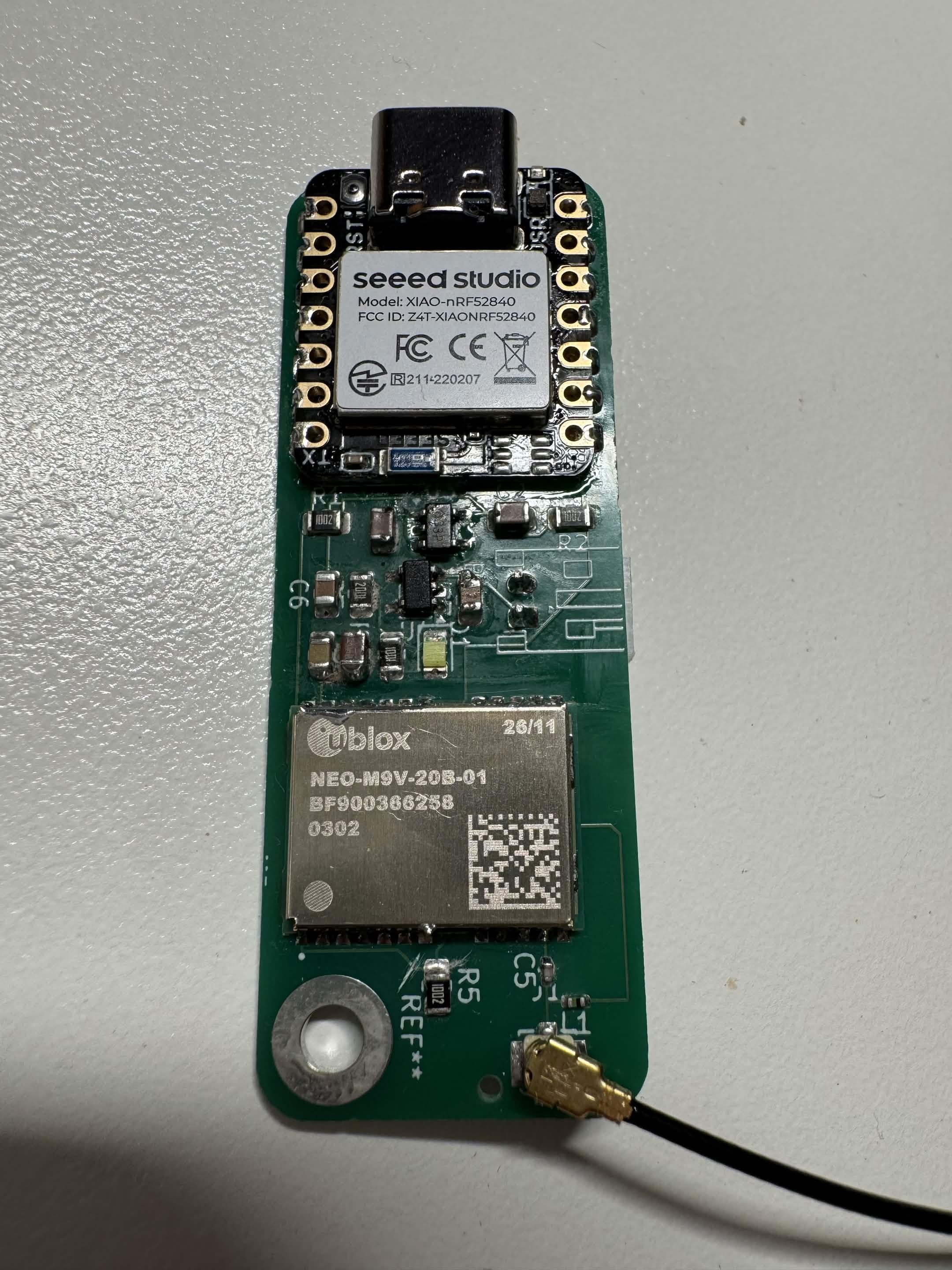

gnss module collecting track data
Aevia is a DIY, battery powered lap timer and track data logger. The current hardware is the V2 Mini, a compact board that combines multi-band GNSS, a 6-axis IMU, local storage, a display interface, physical controls, and wireless connectivity.
Uses very very high end sensors, UM980, SCH16T-K01
The goal is to build something in the same general space as a Garmin Catalyst, but at a lower cost and with more control over the hardware, raw data, and software. Recorded data should also remain useful outside the device, with export to proper desktop analysis tools.
Main components on the Open race v2
Open race v2 bill of materials (BOM)
329 components, 107 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | AP33772SDKZ-13-FA02 Diodes Incorporated | WQFN-24-1EP_4x4mm_P0.5mm_EP2.70x2.70mm_AP33772S | IC1 |
| 1 | STM32N657X0H3Q STMicroelectronics | VFBGA264_14X14_STM | U1 |
| 1 | APS512XXN-OB9-BG AP Memory | WLCSP-24_6x8mm_P1.0mm_APS512XXN | U3 |
| 1 | TPD8S300ARUKR Texas Instruments | Texas_RUK0020B_WQFN-20-1EP_3x3mm_P0.4mm_EP1.7x1.7mm | U4 |
| 1 | IS25WP512M-RHLE ISSI | BGA24C100P5X5_800X600X120 | U5 |
| 1 | BQ25798RQMR Texas Instruments | IC_BQ25798RQMR | U6 |
| 1 | MAX17320G22+ Analog Devices (Maxim Integrated) | TQFN-24-1EP_4x4mm_P0.5mm_EP2.6x2.6mm | U7 |
| 1 | RPL-3.0-R RECOM Power | LGA-10_RECOM_RPL-3.0_3x3mm | U8 |
| 1 | TPSM863253RDXR Texas Instruments | Texas_RDX0007A_QFN-FCMOD-7-3.3x4mm-P0.5mm_4EP_NoVias | U10 |
| 1 | TPS22997RYZR Texas Instruments | Texas_RYZ0010A_WQFN-HR-10_2x1.5mm_P0.5mm | U11 |
| 1 | TPS630701RNMR TPS630701RNMR (5V fixed) Texas Instruments | VQFN-HR-15_RNM_2.5x3mm_P0.5mm | U20 |
| 3 | TPS22918DBVR Texas Instruments | SOT-23-6_DBV | U21, U22, U23 |
| 1 | TXS0104EPWR TXS0104EPW Texas Instruments | TSSOP-14_4.4x5mm_P0.65mm | U24 |
| 1 | TPS3808G01DBVR Texas Instruments | SOT-23-6 | U25 |
| 1 | TLV75533PDBVR Texas Instruments | SOT-23-5 | U26 |
| 1 | ESP32-C6-MINI-1-N4 ESP32-C6-MINI-1 Espressif Systems | ESP32-C6-MINI-1 | U800 |
| 1 | UM980 Unicore Communications | UM980_LGA-54_17x22mm | U900 |
| 1 | SCH16T-K01-1 Murata | SOIC-24_SCH16T_11.8x13.4mm | U1000 |
| 2 | SN74AHCT1G125DCKR Texas Instruments | SOT-353_SC-70-5 | U1100, U1101 |
| 5 | CSD18540Q5B Texas Instruments | VSON-CLIP-8_DNK_5x6mm | Q1, Q2, Q3, Q4, Q5 |
Show 87 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | NX2016SA-24MHZ-EXS00A-CS10820 NDK | Crystal_SMD_2016-4Pin_2.0x1.6mm | Y1 |
| 1 | NX2012SA-32.768KHZ-EXS00A-MU00527 NDK | Crystal_SMD_2012-2Pin_2.0x1.2mm | Y2 |
| 1 | USB4105-GF-A Global Connector Technology (GCT) | USB_C_Receptacle_GCT_USB4105-xx-A_16P_TopMnt_Horizontal | J2 |
| 1 | DM3CS-SF Hirose | DM3CS-SF_HIR | J3 |
| 1 | 43650-0300 2S_PACK_BALANCE Molex | Molex_Micro-Fit_3.0_43650-0300_1x03_P3.00mm_Horizontal | J20 |
| 1 | M50-3530642 M50-3530642 (VTREF sense only) Harwin | PinHeader_1x06_P1.27mm_Vertical | J800 |
| 1 | U.FL-R-SMT-1(10) Hirose Electric | U.FL_Hirose_U.FL-R-SMT-1_Vertical | J900 |
| 1 | 2920L500/24SLDR 5.0A Ihold @23C / 24V PTC Littelfuse | Fuse_2920_7451Metric | F1 |
| 1 | MF-PSMF020X-2 MF-PSMF020X-2 (0.20A hold @23C) Bourns | Fuse_0805_2012Metric | F900 |
| 2 | NCP15XH103F03RC Murata | R_0402_1005Metric | NTC1, TH1 |
| 1 | NCP15XH103F03RC NCP15XH103F03RC 10k B3380 Murata | R_0402_1005Metric | NTC2 |
| 7 | Y78B22324FP KMR223NG ULC LFG Littelfuse (C&K) | SW_Push_1P1T_NO_CK_KMR2 | SW300, SW301, SW800, SW801, SW1101, SW1102, SW1103 |
| 3 | ASMT-RF45-AN002 ASMT-RF45-AN002 YELLOW GREEN Broadcom | LED_0603_1608Metric | D1, D2, D1110 |
| 1 | TVS2200DRVR Texas Instruments | WSON-6-1EP_2x2mm_P0.65mm_EP1x1.6mm_TVS2200 | D3 |
| 1 | BAT54HT1G BAT54XV2T1G onsemi | D_SOD-523 | D4 |
| 1 | SMF5.0A Littelfuse | SOD-123FL_Littelfuse_SMF | D900 |
| 1 | PESD5V0F1BL,315 PESD5V0F1BL (0.4pF) Nexperia | D_SOD-882 | D901 |
| 5 | APA102-2020-256-8 iPixel LED Light Co., Ltd. | LED-APA102-2020 | D1100, D1101, D1102, D1103, D1104 |
| 1 | ASMT-RJ45-AQ502 ASMT-RJ45-AQ502 ORANGE Broadcom | LED_0603_1608Metric | D1111 |
| 1 | ASMT-RR45-AQ902 ASMT-RR45-AQ902 RED Broadcom | LED_0603_1608Metric | D1112 |
| 2 | BLM21PG601SH1D 600Ω @ 100MHz, 1.4A AEC-Q200 Murata | FB_Murata_BLM21_2.0x1.25mm | FB20, FB21 |
| 1 | XAL7030-222MEC 2.2uH XAL7030-222MEC Coilcraft | L_Coilcraft_XAL7030-222 | L1 |
| 1 | MHQ1005P2N2BT000 2.2nH 1A TDK | L_TDK_MHQ1005_1.0x0.6mm | L4 |
| 1 | DFE252012P-1R0M=P2 1uH Murata | L_1008_2520Metric | L7 |
| 1 | BLM18SN220TN1D 22R @100MHz 8A Murata | L_0603_1608Metric | L8 |
| 1 | XFL4020-152MEC 1.5uH XFL4020-152MEC Coilcraft | L_Coilcraft_XxL4020 | L20 |
| 1 | LQW18AN68NG00D LQW18AN68NG00D 68nH 2% Murata Electronics | L_0603_1608Metric | L900 |
| 48 | CGA2B3X7R1H104K050BE 100nF 50V X7R TDK | C_0402_1005Metric | C1, C28, C36, C39, C40, C46, C47, C48 +40 |
| 17 | CGA3E2X7R1H104K080AE 100nF 50V X7R TDK | C_0603_1608Metric | C2, C4, C5, C7, C11, C14, C83, C86 +9 |
| 5 | CGA4J3X7R1H105K125AE 1uF 50V X7R TDK | C_0805_2012Metric | C3, C6, C230, C247, C250 |
| 3 | CGA3E2X7R1H103K080AE 10nF 50V X7R TDK | C_0603_1608Metric | C8, C12, C18 |
| 15 | CNA6P1X7R1H106K250AE 10uF 50V X7R TDK | C_1210_3225Metric | C9, C10, C42, C56, C62, C81, C82, C84 +7 |
| 4 | CGA3E3X7R1E474K080AE 470nF 25V X7R TDK | C_0603_1608Metric | C13, C15, C16, C17 |
| 8 | GCJ21BR71A106KE01L 10uF 10V X7R Murata | C_0805_2012Metric | C29, C35, C245, C248, C307, C802, C903, C1001 |
| 3 | GCM188C71C475KE36D 4.7uF 16V X7S Murata | C_0603_1608Metric | C34, C90, C144 |
| 1 | CGA2B2X7R1H222K050BE 2.2nF 50V X7R TDK | C_0402_1005Metric | C37 |
| 15 | GCM155C71A105KE38D 1uF 10V X7S Murata | C_0402_1005Metric | C38, C41, C43, C44, C45, C51, C57, C60 +7 |
| 2 | CGA3E2X7R1H473K080AE 47nF 50V X7R TDK | C_0603_1608Metric | C49, C53 |
| 2 | CGA4J3X7R1C475K125AE 4.7uF 16V X7R TDK | C_0805_2012Metric | C92, C251 |
| 8 | CGA3E1X7R1E105K080AE 1uF 25V X7R TDK | C_0603_1608Metric | C143, C191, C244, C255, C256, C800, C1000, C1003 |
| 7 | GCJ21BD70J226ME02L 22uF 6.3V X7T Murata | C_0805_2012Metric | C170, C176, C177, C178, C179, C905, C906 |
| 1 | CGA5L1X7R1E106K160AE 10uF 25V X7R TDK | C_1206_3216Metric | C180 |
| 3 | GCJ31CR71A226KE01L 22uF 10V X7R Murata | C_1206_3216Metric | C181, C188, C189 |
| 1 | CGA3E2C0G1H220J080AA 22pF 50V C0G TDK | C_0603_1608Metric | C182 |
| 4 | CGA6P3X7R1E226M250AE 22uF 25V X7R TDK | C_1210_3225Metric | C186, C236, C237, C238 |
| 1 | CGA3E1C0G2A392J080AE 3.9nF 100V C0G TDK | C_0603_1608Metric | C192 |
| 2 | GCJ21BC71E106KE02L 10uF 25V X7S Murata | C_0805_2012Metric | C235, C239 |
| 4 | CGA3E2C0G2A102J080AE 1nF 100V C0G TDK | C_0603_1608Metric | C241, C242, C243, C254 |
| 4 | GCQ1555C1H8R2BB01D 8.2pF 50V C0G (TUNE) Murata | C_0402_1005Metric | C300, C301, C302, C303 |
| 1 | CGA2B3X7R1H103K050BE 10nF 50V X7R TDK | C_0402_1005Metric | C304 |
| 2 | C1210X476K8RACAUTO 47uF 10V X7R KEMET (Yageo Group) | C_1210_3225Metric | C803, C1115 |
| 2 | CGA2B2C0G1H101J050BE 100pF 50V C0G TDK | C_0402_1005Metric | C900, C902 |
| 1 | CRCW06036K20FKEA 6.2k Vishay | R_0603_1608Metric | R1 |
| 1 | CRCW0603200RFKEA 200 Vishay | R_0603_1608Metric | R2 |
| 2 | WSL2512R0050FEA 5m 1% 1W Vishay Dale | R_2512_6332Metric | R3, R13 |
| 4 | CRCW06031K00FKEA 1k Vishay | R_0603_1608Metric | R4, R6, R9, R222 |
| 11 | CRCW060310K0FKEA 10k Vishay | R_0603_1608Metric | R5, R24, R29, R30, R31, R37, R38, R39 +3 |
| 3 | CRCW0603100RFKEA 100 Vishay | R_0603_1608Metric | R7, R8, R23 |
| 1 | CRCW060310R0FKEA 10 Vishay | R_0603_1608Metric | R10 |
| 2 | CRCW120668R0FKEAHP 68 Vishay | R_1206_3216Metric | R11, R12 |
| 6 | CRCW040247K0FKED 47k Vishay | R_0402_1005Metric | R14, R15, R16, R17, R18, R19 |
| 1 | CRCW0603100RFKEA 100R 1% Vishay | R_0603_1608Metric | R20 |
| 2 | WFZ120600000ZE66 0R Vishay | R_1206_3216Metric | R22, R167 |
| 1 | CRCW06035K23FKEA 5.23k 1% Vishay | R_0603_1608Metric | R25 |
| 1 | CRCW060330K1FKEA 30.1k 1% Vishay | R_0603_1608Metric | R26 |
| 1 | RC0402JR-070RL 0R Yageo | R_0402_1005Metric | R27 |
| 1 | CRCW06032K20FKEA 2k2 Vishay | R_0603_1608Metric | R28 |
| 1 | CRCW06038K20FKEA 8.2k Vishay | R_0603_1608Metric | R35 |
| 5 | CRCW040222R0FKED 22R Vishay | R_0402_1005Metric | R58, R1002, R1004, R1005, R1006 |
| 18 | CRCW040210K0FKED 10k Vishay | R_0402_1005Metric | R140, R300, R301, R302, R303, R327, R800, R802 +10 |
| 2 | CRCW04020000Z0ED 0R Vishay | R_0402_1005Metric | R148, R159 |
| 1 | CRCW040210K0FKED 10.0k 1% Vishay | R_0402_1005Metric | R174 |
| 1 | RCS04022R00FKED 2R Vishay | R_0402_1005Metric | R220 |
| 1 | CRCW060347K0FKEA 47k 1% Vishay | R_0603_1608Metric | R223 |
| 1 | CRCW060337K4FKEA 37.4k 1% Vishay | R_0603_1608Metric | R224 |
| 1 | CRCW0603220KFKEA 220k Vishay | R_0603_1608Metric | R228 |
| 7 | CRCW0603100KFKEA 100k Vishay | R_0603_1608Metric | R229, R244, R245, R246, R247, R248, R249 |
| 2 | CRCW06035K10FKEA 5.1k 1% Vishay | R_0603_1608Metric | R241, R242 |
| 1 | CRCW060388K7FKEA 88.7k 1% Vishay | R_0603_1608Metric | R250 |
| 1 | CRCW060310K0FKEA 10.0k 1% Vishay | R_0603_1608Metric | R251 |
| 1 | CRCW0402100KFKED 100k Vishay | R_0402_1005Metric | R304 |
| 1 | CRCW0402200RFKED 200R 1% Vishay | R_0402_1005Metric | R326 |
| 10 | CRCW04021K00FKED 1k Vishay | R_0402_1005Metric | R801, R803, R805, R806, R901, R905, R906, R1110 +2 |
| 1 | CRCW040210K0FKED 10k VTREF isolation Vishay | R_0402_1005Metric | R807 |
| 1 | CRCW040210R0FKED 10R Vishay | R_0402_1005Metric | R902 |
| 1 | CRCW0402100RFKED 100R Vishay | R_0402_1005Metric | R1001 |
| 3 | CRCW040233R0FKED 33R Vishay | R_0402_1005Metric | R1003, R1100, R1101 |
Open race v2 design files
The KiCad project lives in the teehee567/Aevia repository on GitHub; these links point at the commit this page was built from.
Open race v2: common questions
What microcontroller does the Open race v2 use?
The Open race v2 is built around the ESP32-C6-MINI-1-N4, from the ESP32 family.
How big is the Open race v2 PCB?
The Open race v2 measures 90.5 × 49.5 mm, has 8 copper layers and is 1.6 mm thick.
How many components are on the Open race v2?
329 components, from 107 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Open race v2 design files?
From the teehee567/Aevia repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Open race v2 design in my own project?
The repository has no license, so all rights stay with teehee567. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Open race v2 without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
