BitForge-Nano
About the BitForge-Nano PCB
BitForge-Nano is an open source ESP32 PCB design by WantClueTechnologies, published on GitHub under the CERN-OHL-S-2.0 license. It is a 6-layer board measuring 55 × 120 mm, with 183 components from 58 distinct parts.
Its main chip is the ESP32-S3-WROOM-1, from the ESP32 family. Other key parts include the SN74AVC4T774, LMR54410, BM1370_mode1, INA260 and MCP1824T-1202E/OT. By type, the board carries 100 capacitors, 58 resistors, 14 ICs, 4 connectors, 2 diodes and 2 inductors.
It belongs with the power & battery and sensors designs in this gallery.
From the project

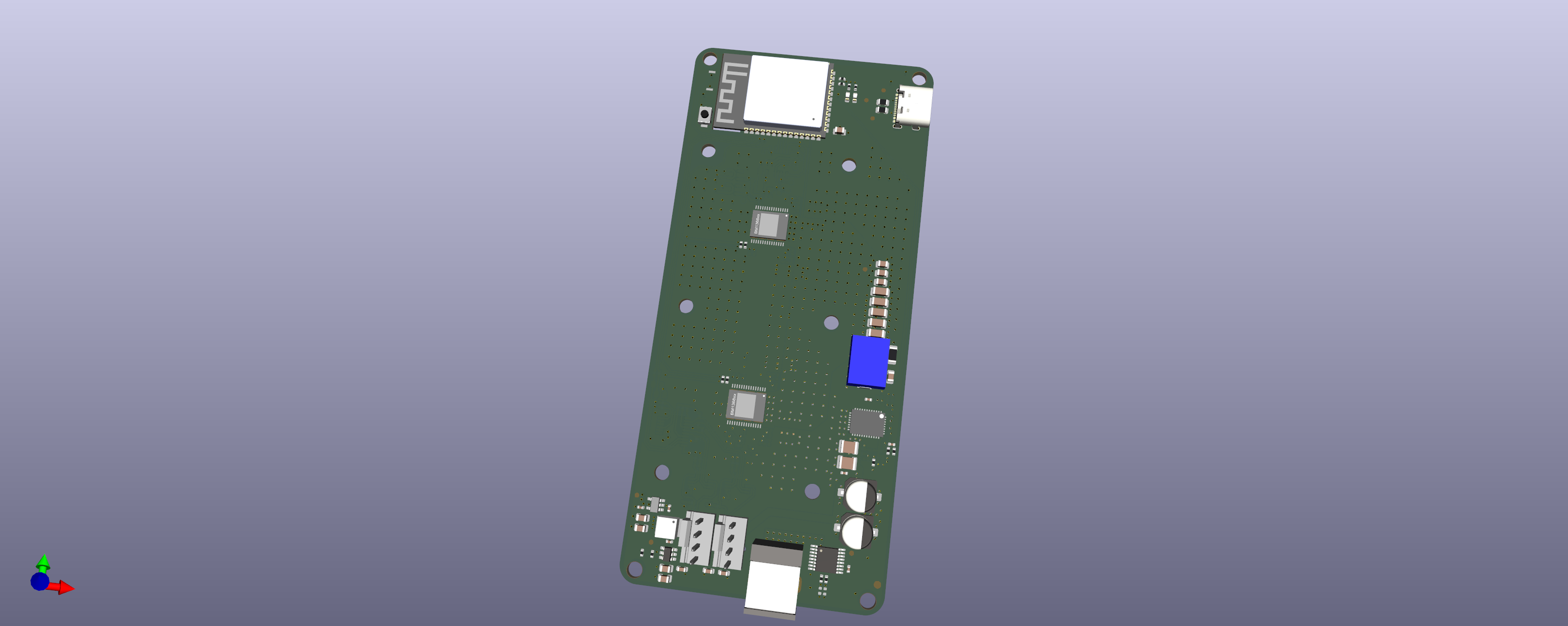

This project presents a fully open-source Bitcoin mining hardware platform, designed for transparency, modularity, and extensibility. Built around the BM1370 ASICs and powered by an ESP32-S3 microcontroller, this board offers a compact yet powerful solution for enthusiasts and de
This project presents a fully open-source Bitcoin mining hardware platform, designed for transparency, modularity, and extensibility. Built around the BM1370 ASICs and powered by an ESP32-S3 microcontroller, this board offers a compact yet powerful solution for enthusiasts and developers interested in cryptocurrency mining hardware.
Released under the CERN OHL 2 S, all design files, firmware, and documentation are freely available for use, modification, and redistribution.
Main components on the BitForge-Nano
BitForge-Nano bill of materials (BOM)
183 components, 58 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SN74AVC4T774 | TSSOP-16_4.4x5mm_P0.65mm | U1 |
| 1 | LMR54410 | SOT-23-6 | U2 |
| 2 | BM1370_mode1 | BM1370 | U3, U9 |
| 1 | INA260 | TSSOP-16_4.4x5mm_P0.65mm | U4 |
| 1 | MCP1824T-1202E/OT | SOT-23-5 | U5 |
| 1 | MCP1824T-0802E | SOT-23-5 | U6 |
| 1 | RT9080-33GJ5 | RT9080-33GJ5 | U7 |
| 1 | ESP32-S3-WROOM-1 | ESP32-S3-WROOM-1 | U8 |
| 1 | 25MHz | O 25,0-JO32-B-1V3-1-T1-LF | U11 |
| 1 | TPS546D24ARVFR | LQFN40-CLIP | U12 |
| 1 | PCA9544APW | TSSOP-20_4.4x6.5mm_P0.65mm | U502 |
| 2 | EMC2101 | TSSOP-8_3x3mm_P0.65mm | U503, U504 |
| 1 | PJ-063AH | BarrelJack_CUI_PJ-063AH_Horizontal | J1 |
| 1 | USB_C_Receptacle_USB2.0 USB4105-GF-A | USB_C_Receptacle_GCT_USB4105-xx-A_16P_TopMnt_Horizontal | J5 |
| 2 | Conn_01x04 | 470531000 | J6, J8 |
| 1 | GT-TC029B-H025-L1N | SW_CS1213AGF260_CRS | SW2 |
| 2 | 10k Thermistor | R_0402_1005Metric | TH1, TH2 |
| 2 | LED | LED_0603_1608Metric | D1, D2 |
| 1 | 150nH | FP1007R3-R15-R | L1 |
| 1 | 8.2 uH | Inductor-74438357082 | L2 |
Show 38 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 40 | 1uF | C_0402_1005Metric | C1, C5, C7, C15, C16, C18, C19, C26 +32 |
| 6 | 10uF | C_0805_2012Metric | C2, C14, C22, C47, C87, C88 |
| 3 | 47uF | C_1210_3225Metric | C3, C4, C76 |
| 1 | 4700pF | C_0402_1005Metric | C6 |
| 8 | 0.1uF | C_0402_1005Metric | C8, C11, C46, C81, C86, C89, C90, C91 |
| 1 | 2200pF | C_0402_1005Metric | C9 |
| 1 | 4.7uF | C_0402_1005Metric | C10 |
| 1 | 1000pF | C_0805_2012Metric | C12 |
| 1 | 100pF | C_0402_1005Metric | C13 |
| 6 | 0.1uF | C_0805_2012Metric | C17, C29, C35, C48, C58, C59 |
| 7 | 22uF | C_0805_2012Metric | C20, C25, C30, C77, C78, C82, C92 |
| 2 | 470pF | C_0402_1005Metric | C21, C42 |
| 2 | 10uF | C_0603_1608Metric | C23, C24 |
| 2 | 100uF | C_1210_3225Metric | C41, C64 |
| 1 | 0.1uF | C_0603_1608Metric | C43 |
| 2 | 180uF | CP_Elec_6.3x5.9 | C45, C85 |
| 1 | 1uF | C_0805_2012Metric | C49 |
| 15 | 100uF | C_1206_3216Metric | C53, C73, C74, C75, C79, C80, C93, C94 +7 |
| 1 | 8.25k | R_0402_1005Metric | R1 |
| 1 | 21.5k | R_0402_1005Metric | R5 |
| 14 | 0 | R_0402_1005Metric | R6, R46, R47, R48, R49, R54, R55, R57 +6 |
| 1 | 4.75k | R_0402_1005Metric | R8 |
| 1 | 13.3k | R_0402_1005Metric | R9 |
| 1 | 68.1k | R_0402_1005Metric | R10 |
| 2 | 1k | R_0402_1005Metric | R13, R33 |
| 2 | 560 | R_0402_1005Metric | R14, R22 |
| 8 | 10k | R_0402_1005Metric | R17, R23, R31, R36, R44, R45, R68, R73 |
| 2 | 5.6k | R_0402_1005Metric | R18, R20 |
| 1 | 10k | R_0805_2012Metric | R21 |
| 11 | 4k7 | R_0402_1005Metric | R25, R26, R78, R79, R80, R81, R82, R83 +3 |
| 2 | 5.1k | R_0805_2012Metric | R28, R29 |
| 1 | 10 | R_0402_1005Metric | R30 |
| 1 | 1 | R_1206_3216Metric | R32 |
| 2 | 22 | R_0805_2012Metric | R37, R38 |
| 2 | 49.9 | R_0402_1005Metric | R39, R41 |
| 3 | 100k | R_0402_1005Metric | R40, R52, R53 |
| 1 | 115k | R_0402_1005Metric | R42 |
| 1 | 22.1k | R_0402_1005Metric | R43 |
BitForge-Nano design files
The KiCad project lives in the WantClueTechnologies/BitForge-Nano repository on GitHub; these links point at the commit this page was built from.
BitForge-Nano: common questions
What microcontroller does the BitForge-Nano use?
The BitForge-Nano is built around the ESP32-S3-WROOM-1, from the ESP32 family.
How big is the BitForge-Nano PCB?
The BitForge-Nano measures 55 × 120 mm, has 6 copper layers and is 1.6 mm thick.
How many components are on the BitForge-Nano?
183 components, from 58 distinct parts. The full bill of materials is listed on this page.
Where can I download the BitForge-Nano design files?
From the WantClueTechnologies/BitForge-Nano repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the BitForge-Nano design in my own project?
Yes, under the terms of its CERN-OHL-S-2.0 license, which WantClueTechnologies chose for the repository.
Can I test firmware for the BitForge-Nano without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
