Elec RPI Robot HAT

pollen-robotics·elec_RPI_Robot_HAT

Elec RPI Robot HAT layout, top view — open source board by pollen-robotics
Simulate this board

About the Elec RPI Robot HAT

Elec RPI Robot HAT is an open source PCB design by pollen-robotics, published on GitHub under the Apache-2.0 license. It is a 4-layer board measuring 65 × 30.9 mm, with 122 components from 46 distinct parts.

Other key parts include the PAM8406D, TLV320AIC3104IRHBR, XC6206P182MR, DNP-CAT24C32HU4 and 74LVC1G08. By type, the board carries 44 capacitors, 40 resistors, 12 connectors, 11 ICs, 4 inductors and 3 test points.

It belongs with the robotics & motion, sensors and dev boards & breakouts designs in this gallery.

From the project

RPI HAT for small/medium robots (IMU, Dynamixel)

- IMU over I2C - Dynamixel motor communication: both TTL and 485 to drive Dynamixel/Feetech motor (requires cable adaptation) - in/out audio device with an integrated mems microphone. Wago connectors allows connection of loudspeaker and extra microphone. - expension Qwiic connectors, 1 mm/3V3. Please refer to the schematic for knowing which can be use on you raspberry pi.

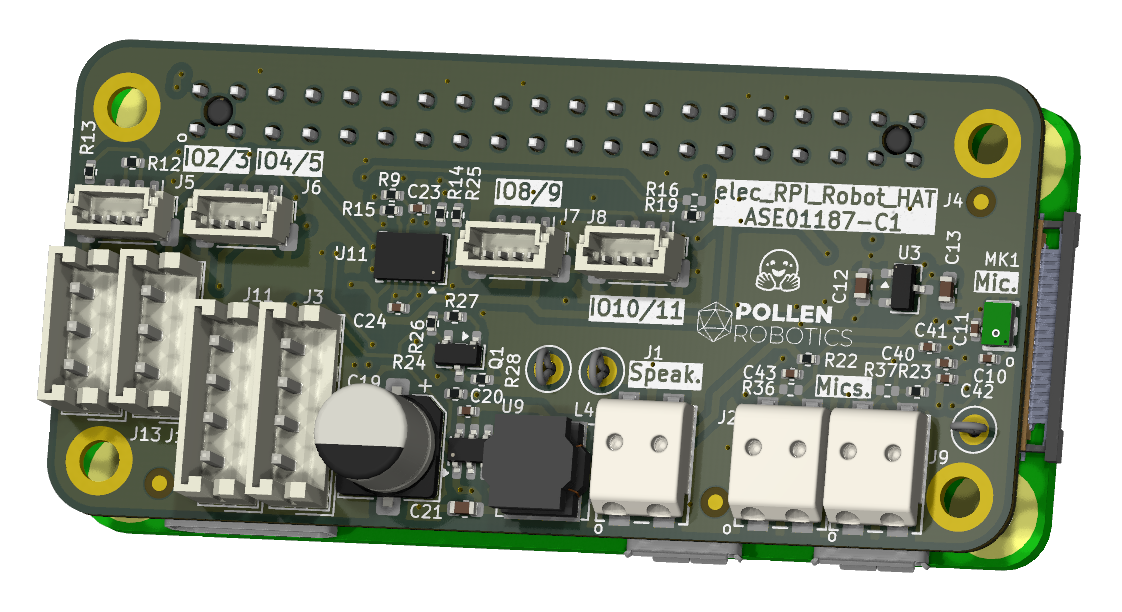

Elec RPI Robot HAT, from the project README
From the project README

Main components on the Elec RPI Robot HAT

PAM8406DTLV320AIC3104IRHBRXC6206P182MRDNP-CAT24C32HU474LVC1G08SN74LVC1G125DBVSN74LVC1G126DBVRSIT3088EAP63205LM5050-1BMI088

Elec RPI Robot HAT bill of materials (BOM)

122 components, 46 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
PAM8406D
U1
1
TLV320AIC3104IRHBR
U2
1
XC6206P182MR
U3
1
DNP-CAT24C32HU4
U4
1
74LVC1G08
U5
1
SN74LVC1G125DBV
U6
1
SN74LVC1G126DBVR
U7
1
SIT3088E
U8
1
AP63205
U9
1
LM5050-1
U10
1
BMI088
U11
1
MMBT3906
Q1
1
SI2312CDS-T1-GE3
Q2
1
C7425459
12 MHz
Y1
3
WAGO-2
Wago-2
J1, J2, J9
2
DYNAMIXEL-4
Dynamixel-4
J3, J11
1
C2685112
Female Header 2x20 SMD
J4
4
C160390
JST SH
J5, J6, J7, J8
2
DYNAMIXEL-3
Dynamixel-3
J13, J14
1
C7587901
Microphone_MEMS
MK1
Show 26 more
QtyPartRefs
1
C913703
100R thermistor
TH1
3
TestPoint
TP2, TP3, TP4
1
BAT54W
D1
1
C19077392
3V3 Zener Diode
D2
1
5V1
D4
1
C76884
1.3A 600R@100MHz
FB1
2
C88970
2A - 120R@100MHz
FB2, FB3
1
C57254
6,8u 2A
L4
15
1u
C1, C2, C3, C4, C6, C10, C27, C29 +7
5
10U
10u
C5, C7, C12, C13, C37
2
220N
220n
C8, C9
12
100N
100n
C11, C14, C15, C16, C17, C18, C26, C28 +4
1
C72488
10u 63V
C19
1
C307331
100n 50V
C20
2
C84419
22u 6V3
C21, C22
3
C1525
100n 6V3
C23, C24, C39
1
DNP-100N
DNP-100n
C25
2
10N
10n
C34, C44
19
10K
10k
R1, R2, R6, R12, R13, R20, R21, R22 +11
11
C17168
0R
R3, R4, R5, R7, R9, R14, R15, R18 +3
1
100R
R8
2
DNP-10K
DNP-10k
R10, R11
3
DNP-0R
R16, R17, R41
1
20K
20k
R28
1
150R
R33
2
DNP-1M
R36, R37

Elec RPI Robot HAT design files

The KiCad project lives in the pollen-robotics/elec_RPI_Robot_HAT repository on GitHub; these links point at the commit this page was built from.

Elec RPI Robot HAT: common questions

How big is the Elec RPI Robot HAT?

The Elec RPI Robot HAT measures 65 × 30.9 mm, has 4 copper layers and is 1 mm thick.

How many components are on the Elec RPI Robot HAT?

122 components, from 46 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Elec RPI Robot HAT design files?

From the pollen-robotics/elec_RPI_Robot_HAT repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Elec RPI Robot HAT design in my own project?

Yes, under the terms of its Apache-2.0 license, which pollen-robotics chose for the repository.
