About the Black-Flipper PCB
Black-Flipper is an open source ESP32 PCB design by Broccoliux, published on GitHub. It is a 4-layer board measuring 142.1 × 143 mm, with 206 components from 91 distinct parts.
Its main chip is the ESP32-S3, from the ESP32 family. Other key parts include the W25Q128JVS, CC1101, PN5321A3HN, MAX-M8Q and MASW-007221. By type, the board carries 88 capacitors, 39 resistors, 23 inductors, 17 ICs, 8 switches and 4 crystals.
It belongs with the rf & radio and iot & wireless designs in this gallery.
From the project

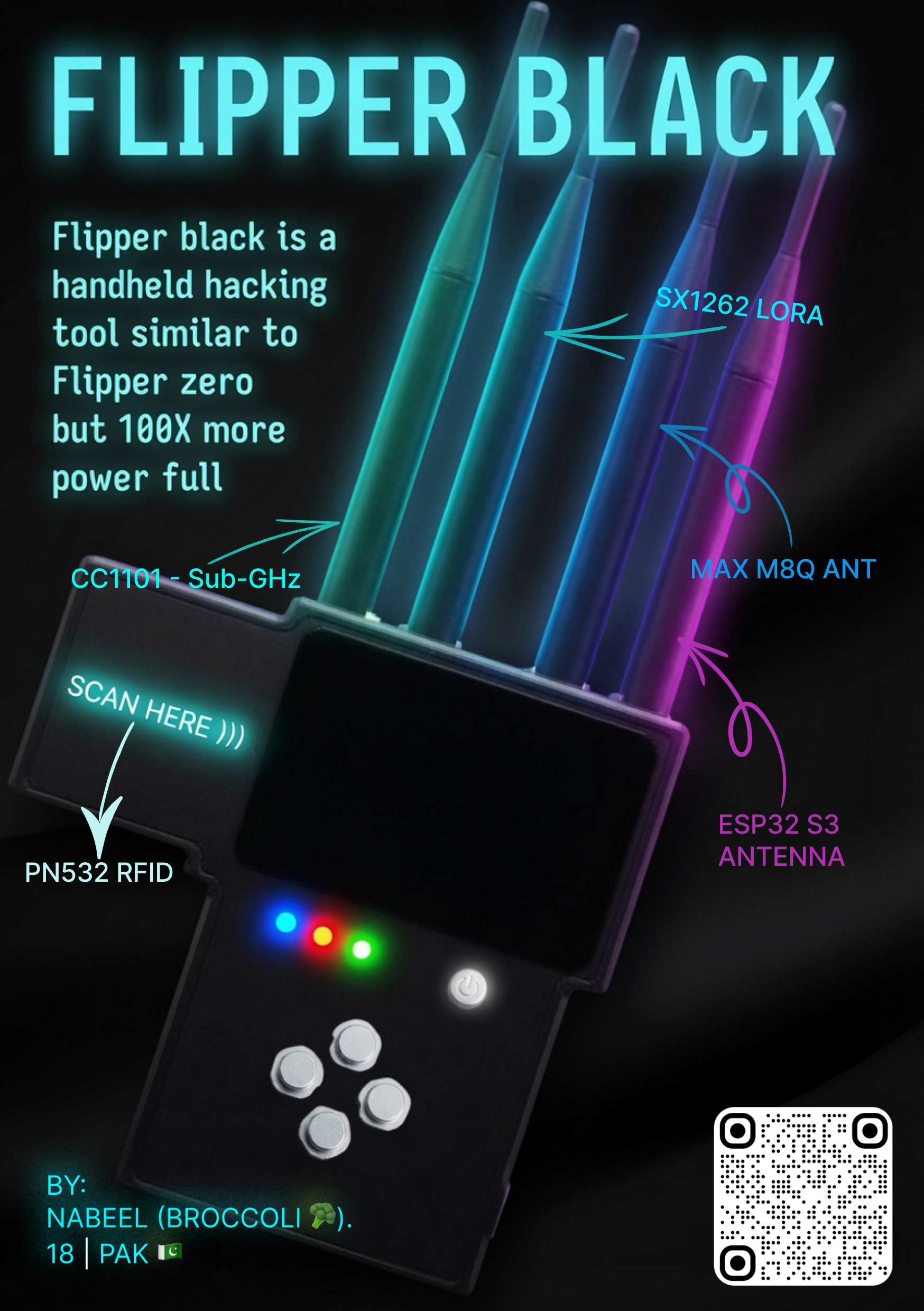

A device that out smart Flipper Zero in every aspect.
Flipper black is custom made hacking tool, it can out perfrom flipper Zero in almost every aspect. it have better and larger dsplay and have more power and range then flipper zero.
I wanted a flipper zero but when i researched about it. i found out that just buying a Flipper Zero is almost useless, to unlock its full power we need to spend more $$, so i decided to build my own with everything in it, no external attachments needed.

Main components on the Black-Flipper
Black-Flipper bill of materials (BOM)
206 components, 91 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ESP32-S3 | QFN-56-1EP_7x7mm_P0.4mm_EP4x4mm | U1 |
| 1 | W25Q128JVS | SOIC-8_5.3x5.3mm_P1.27mm | U2 |
| 1 | CC1101 | QLP20 | U3 |
| 1 | PN5321A3HN | HVQFN-40-1EP_6x6mm_P0.5mm_EP4.1x4.1mm | U7 |
| 1 | MAX-M8Q | ublox_MAX | U8 |
| 1 | MASW-007221 | SOT-363_SC-70-6 | U9 |
| 1 | BGA725L6 | BGA725L6E6327 | U10 |
| 1 | TLV70018_SOT23-5 | SOT-23-5 | U11 |
| 1 | TXB0102DCU | VSSOP-8_2.3x2mm_P0.5mm | U12 |
| 1 | MCP23017X-X-SS MCP23017x-x-SS | SSOP-28_5.3x10.2mm_P0.65mm | U13 |
| 1 | TSOP382XX TSOP382xx | Vishay_MINICAST-3Pin | U14 |
| 1 | TP4056 | SOIC-8-1EP_3.9x4.9mm_P1.27mm_EP2.41x3.3mm_ThermalVias | U15 |
| 1 | PESD5V0L4UG,115 | SOT65P210X110-5N | U16 |
| 1 | AP2112K-3.3 | SOT-23-5 | U17 |
| 1 | DW01A | SOT-23-6 | U18 |
| 1 | SX1262IMLTRT | QFN50P400X400X100-25N | U19 |
| 1 | PE4259 | SOT65P215X110-6N | U20 |
| 1 | MMBT2222A | SOT-23 | Q1 |
| 1 | FS8205A | SOP65P640X120-8N | Q2 |
| 1 | 40MHz SMD 3225 | Crystal_SMD_2016-4Pin_2.0x1.6mm | Y1 |
Show 71 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 26 MHz SMD | Crystal_SMD_2016-4Pin_2.0x1.6mm | Y2 |
| 1 | 27.120 MHz | Crystal_SMD_2016-4Pin_2.0x1.6mm | Y4 |
| 1 | 32 MHz SMD | Crystal_SMD_2016-4Pin_2.0x1.6mm | Y5 |
| 1 | Micro_SD_Card_Det2 | GCT_MEM2067-02-180-00-A_REVB | J1 |
| 1 | DISP_3.5_WAVESHARE Value: DISP_3.5_WAVESHARE | Amphenol_F32Q-1A7x1-11015_1x15-1MP_P0.5mm_Horizontal | J2 |
| 1 | JST-2PIN JST-2pin | JST_PH_S2B-PH-SM4-TB_1x02-1MP_P2.00mm_Horizontal | P1 |
| 1 | USB_C_PLUG_USB2.0 USB_C_Plug_USB2.0 | USB_C_Receptacle_GCT_USB4105-xx-A_16P_TopMnt_Horizontal | P2 |
| 1 | PN532 ANT | NFC_45x45_N4_NXP_PN5180 | AE1 |
| 4 | 50ohm | U.FL_Hirose_U.FL-R-SMT-1_Vertical | CC1101_ANT1, GPS_ANT1, PCB_ANT1, SX1262 |
| 1 | 1uF | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C_EN1 |
| 1 | SAFFB1G58KA0F0A | Filter_1109-5_1.1x0.9mm | FL1 |
| 5 | 10k | R_0402_1005Metric | R_38, R_BOOT1, R_EN1, R_G45, R_G46 |
| 2 | 0R | R_0402_1005Metric | R_I0, R_I1 |
| 1 | boot | SW_SPST_B3U-1000P | SW1 |
| 1 | REST | SW_SPST_B3U-1000P | SW2 |
| 1 | BTN_POWER | SW_PTS645SH43SMTR92LFS | SW3 |
| 1 | BTN_OK | SW_PTS645SH43SMTR92LFS | SW4 |
| 1 | BTN_UP | SW_PTS645SH43SMTR92LFS | SW5 |
| 1 | BTN_DOWN | SW_PTS645SH43SMTR92LFS | SW6 |
| 1 | BTN_LEFT | SW_PTS645SH43SMTR92LFS | SW7 |
| 1 | BTN_RIGHT | SW_PTS645SH43SMTR92LFS | SW8 |
| 3 | 940nm | LED_1206_3216Metric | IR_LEDs1, IR_LEDs2, IR_LEDs3 |
| 1 | TPESD5V0L2 | D_SOD-323_HandSoldering | D1 |
| 2 | LED | LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder | D2, D3 |
| 1 | MBR1020VL | D_SOD-123F | D4 |
| 2 | BLM21PG221SN1D | L_0603_1608Metric_Pad1.05x0.95mm_HandSolder | FB1, FB2 |
| 1 | 2nH 500mA | L_0603_1608Metric_Pad1.05x0.95mm_HandSolder | L1 |
| 1 | 24NH 24nH | L_0603_1608Metric_Pad1.05x0.95mm_HandSolder | L2 |
| 2 | 2.7NH 2.7nH | L_0603_1608Metric_Pad1.05x0.95mm_HandSolder | L3, L4 |
| 5 | 27NH 27nH | L_0603_1608Metric_Pad1.05x0.95mm_HandSolder | L5, L6, L7, L8, L32 |
| 2 | 47NH 47nH | L_0603_1608Metric_Pad1.05x0.95mm_HandSolder | L9, L10 |
| 1 | 23NH 23nH | L_0603_1608Metric_Pad1.05x0.95mm_HandSolder | L11 |
| 2 | 220NH 220nH | L_0603_1608Metric_Pad1.05x0.95mm_HandSolder | L25, L26 |
| 1 | 5.6NH 5.6nH | L_0603_1608Metric_Pad1.05x0.95mm_HandSolder | L27 |
| 2 | 18NH 18nH | L_0603_1608Metric_Pad1.05x0.95mm_HandSolder | L28, L33 |
| 2 | 15NH 15nH | L_0603_1608Metric_Pad1.05x0.95mm_HandSolder | L29, L30 |
| 2 | 22NH 22nH | L_0603_1608Metric_Pad1.05x0.95mm_HandSolder | L31, L34 |
| 26 | 100NF 100nf | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C1, C2, C6, C7, C8, C17, C18, C67 +18 |
| 3 | 0.1UF 0.1uf | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C3, C16, C101 |
| 6 | 10UF 10uf | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C4, C95, C102, C103, C104, C106 |
| 5 | 1UF 1uf | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C5, C9, C72, C85, C108 |
| 9 | 18PF 18pf | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C10, C11, C19, C20, C21, C22, C23, C24 +1 |
| 1 | 1.8PF 1.8pF | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C12 |
| 1 | 1.2PF 1.2pF | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C13 |
| 2 | 1.0PF 1.0pF | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C14, C25 |
| 3 | 1.5PF 1.5pf | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C15, C26, C27 |
| 1 | 100nf | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C29 |
| 1 | 22PF 22 pf | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C73 |
| 5 | 22PF 22pf | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C74, C78, C80, C92, C119 |
| 4 | 220PF 220pf | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C76, C77, C79, C81 |
| 4 | 1NF 1nf | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C82, C91, C116, C122 |
| 2 | 100PF 100pf | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C83, C105 |
| 1 | 47PF 100uf | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C88 |
| 1 | 10PF 47pf | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C89 |
| 2 | 10NF 10nf | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C90, C93 |
| 1 | 470NF 470nf | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C110 |
| 5 | 10PF 10pf | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C111, C112, C118, C120, C123 |
| 1 | 6.8PF 6.8pf | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C114 |
| 2 | 8.2PF 8.2pf | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C115, C125 |
| 2 | 5.66PF 5.6pf | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C117, C124 |
| 5 | 0R | R_0402_1005Metric | R1, R2, R3, R4, R5 |
| 1 | 499R | R_0402_1005Metric | R6 |
| 11 | 10K | R_0402_1005Metric | R7, R18, R19, R23, R24, R26, R27, R28 +3 |
| 1 | 10K | R_0402_1005Metric | R8 |
| 9 | 10R | R_0402_1005Metric | R20, R22, R25, R37, R38, R41, R42, R43 +1 |
| 3 | 1K | R_0402_1005Metric | R21, R35, R36 |
| 3 | 33R | R_0402_1005Metric | R29, R30, R32 |
| 3 | 100R | R_0402_1005Metric | R31, R47, R48 |
| 1 | 1.2K | R_0402_1005Metric | R33 |
| 1 | 100K | R_0402_1005Metric | R39 |
| 1 | 5.1K | R_0402_1005Metric | R40 |
Black-Flipper design files
The KiCad project lives in the Broccoliux/Black-Flipper repository on GitHub; these links point at the commit this page was built from.
Black-Flipper: common questions
What microcontroller does the Black-Flipper use?
The Black-Flipper is built around the ESP32-S3, from the ESP32 family.
How big is the Black-Flipper PCB?
The Black-Flipper measures 142.1 × 143 mm, has 4 copper layers and is 1.8 mm thick.
How many components are on the Black-Flipper?
206 components, from 91 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Black-Flipper design files?
From the Broccoliux/Black-Flipper repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Black-Flipper design in my own project?
The repository has no license, so all rights stay with Broccoliux. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Black-Flipper without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
