Iasis

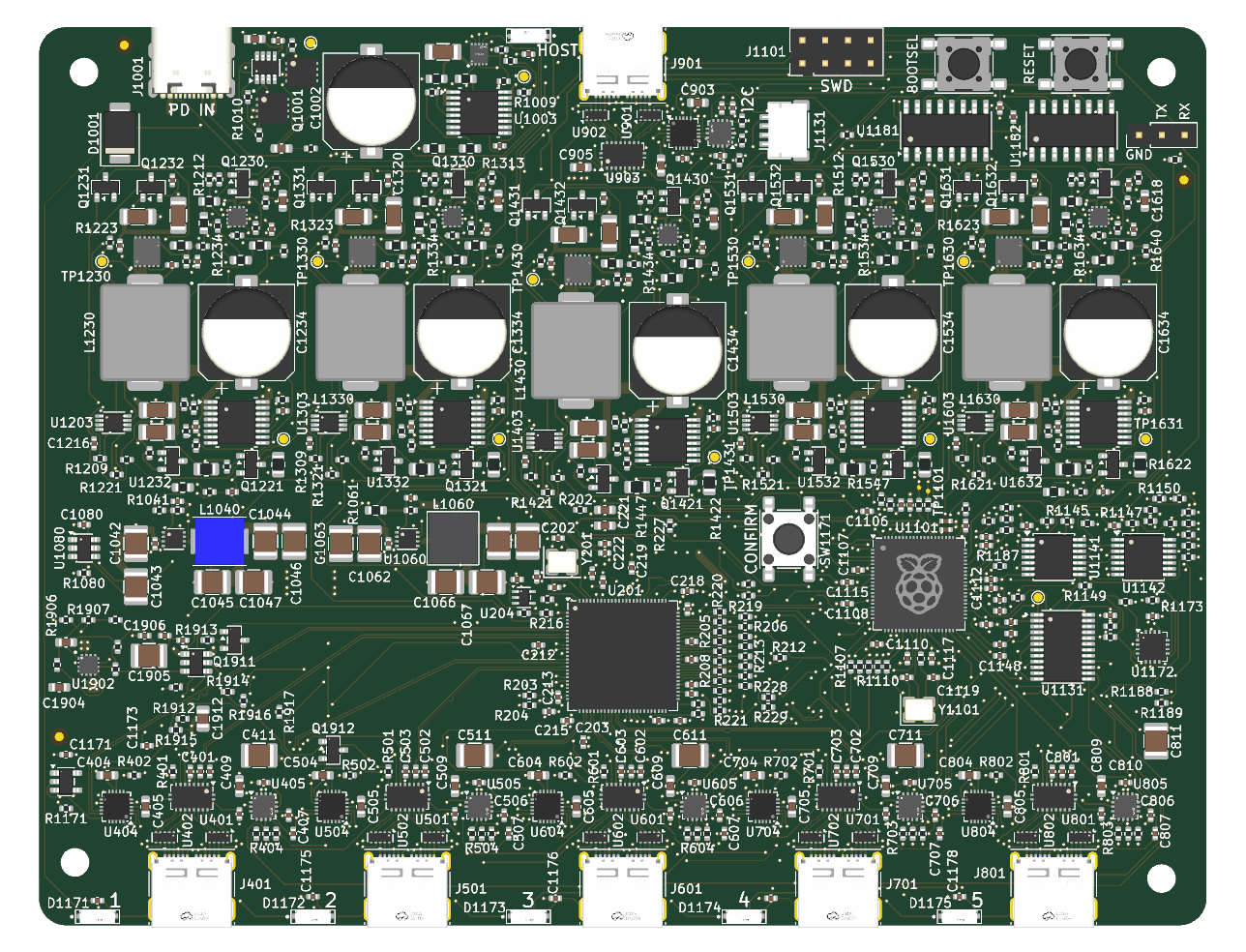

About the Iasis PCB
Iasis is an open source Raspberry Pi PCB design by hydazz, published on GitHub under the Apache-2.0 license. It is a 6-layer board measuring 130 × 100 mm, with 636 components from 100 distinct parts.
Its main chip is the RP2354B, from the Raspberry Pi family. Other key parts include the USB7206CT/KDX, SN74AUP1G08DCKR, HD3SS3212IRKSR, TPD4E02B04DQAR and TPD6S300ARUKR. By type, the board carries 276 resistors, 232 capacitors, 73 ICs, 24 transistors, 10 connectors and 7 diodes.
From the project
KiCad 10 project for the six-layer, 130 × 100 mm Iasis board. One layout carries two assembly variants, Hub and HubPD; the repository README describes them.
KiCad 10 project for the six-layer, 130 × 100 mm Iasis board. One layout carries two assembly variants, Hub and HubPD; the repository README describes them.
- iasis.kicadsch and its sheets, iasis.kicadpcb, iasis.kicadpro, and iasis.kicaddru for the rules the board setup cannot express. - Iasis.kicadsym, Iasis.pretty and Iasis.3dshapes: project symbols, footprints and models. NOTICE files give their sources and licences. - jlccpl.py corrects placements for JLCPCB (below); preview.py writes preview/board.png and preview/layout.png.
Main components on the Iasis
Iasis bill of materials (BOM)
636 components, 100 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | USB7206CT/KDX Microchip Tech | VQFN-100-1EP_12x12mm_P0.4mm_EP8x8mm_ThermalVias | U201 |
| 1 | SN74AUP1G08DCKR Texas Instruments | SOT-353_SC-70-5 | U204 |
| 6 | HD3SS3212IRKSR Texas Instruments | DHVQFN-20-1EP_2.5x4.5mm_P0.5mm_EP1x3mm | U401, U501, U601, U701, U801, U903 |
| 12 | TPD4E02B04DQAR Texas Instruments | USON-10_2.5x1.0mm_P0.5mm | U402, U403, U502, U503, U602, U603, U702, U703 +4 |
| 6 | TPD6S300ARUKR Texas Instruments | WQFN-20-1EP_3x3mm_P0.4mm_EP1.7x1.7mm_ThermalVias | U404, U504, U604, U704, U804, U904 |
| 6 | FUSB302BMPX onsemi | WQFN-14-1EP_2.5x2.5mm_P0.5mm_EP1.45x1.45mm | U405, U505, U605, U705, U805, U905 |
| 1 | LM74502DDFR Texas Instruments | Texas_DDF0008A_SOT-8_1.6x2.9mm_P0.65mm | U1001 |
| 1 | CH224Q WCH(Jiangsu Qin Heng) | WCH_CH224Q_DFN10 | U1002 |
| 6 | TPS26600PWPR Texas Instruments | HTSSOP-16-1EP_4.4x5mm_P0.65mm_EP3.4x5mm_Mask2.66x2.46mm_ThermalVias | U1003, U1231, U1331, U1431, U1531, U1631 |
| 2 | AP3441SHE-7B Diodes Incorporated | DFN-8-1EP_2x2mm_P0.5mm_EP0.9x1.7mm | U1040, U1060 |
| 1 | TPS3808G33DBVR Texas Instruments | SOT-23-6 | U1080 |
| 1 | RP2354B Raspberry Pi | QFN-80-1EP_10x10mm_P0.4mm_EP3.4x3.4mm | U1101 |
| 1 | TCA9548APWR Texas Instruments | TSSOP-24_4.4x7.8mm_P0.65mm | U1131 |
| 2 | TMUX1511PWR Texas Instruments | TSSOP-14_4.4x5mm_P0.65mm | U1141, U1142 |
| 1 | SN74AHCT1G125DBVR Texas Instruments | SOT-23-5 | U1171 |
| 1 | TCA6408ARGTR Texas Instruments | VQFN-16-1EP_3x3mm_P0.5mm_EP1.45x1.45mm | U1172 |
| 2 | 74HC595D,118 Nexperia | SOIC-16_3.9x9.9mm_P1.27mm | U1181, U1182 |
| 6 | TPS259470LRPWR Texas Instruments | TI_RPW0010A | U1202, U1302, U1402, U1502, U1602, U1902 |
| 5 | 74LVC2G08DC-Q100H Nexperia | VSSOP-8_2.3x2mm_P0.5mm | U1203, U1303, U1403, U1503, U1603 |
| 5 | LMR51450SDRRR Texas Instruments | TI_DRR0012G | U1230, U1330, U1430, U1530, U1630 |
Show 80 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 5 | LM4040DIM3X-2.5/NOPB Texas Instruments | SOT-23 | U1232, U1332, U1432, U1532, U1632 |
| 1 | AP22653W6-7 Diodes Incorporated | SOT-23-6 | U1901 |
| 2 | CSD18543Q3A Texas Instruments | TI_CSD18543Q3A | Q1001, Q1002 |
| 22 | 2N7002 Jiangsu Changjing Electronics Technology Co., Ltd. | SOT-23 | Q1221, Q1230, Q1231, Q1232, Q1321, Q1330, Q1331, Q1332 +14 |
| 1 | X322525MSB4SI YXC Crystal Oscillators | Crystal_SMD_3225-4Pin_3.2x2.5mm | Y201 |
| 1 | ABM8-272-T3 Abracon LLC | Crystal_SMD_3225-4Pin_3.2x2.5mm | Y1101 |
| 6 | 1054500101 MOLEX | USB_C_Receptacle_Molex_105450-0101 | J401, J501, J601, J701, J801, J901 |
| 1 | USB4105-GF-A-120 Global Connector Technology | GCT_USB4105_GF_A_120 | J1001 |
| 1 | TSW-104-07-G-D Samtec | PinHeader_2x04_P2.54mm_Vertical | J1101 |
| 1 | SM04B-SRSS-TB(LF)(SN) SM04B-SRSS-TB JST | JST_SH_SM04B-SRSS-TB_1x04-1MP_P1.00mm_Horizontal | J1131 |
| 1 | UART debug | PinHeader_1x03_P2.54mm_Vertical | J1132 |
| 3 | PTS645SL50SMTR92LFS C&K | SW_SPST_PTS645Sx43SMTR92 | SW1101, SW1102, SW1171 |
| 2 | NCU18XH103F60RB 10k 1% NTC Murata Electronics | R_0603_1608Metric | TH1191, TH1192 |
| 1 | SMBJ30CA Littelfuse | D_SMB | D1001 |
| 6 | SK6812SIDE-A OPSCO Optoelectronics | OPSCO_SK6812SIDE-A | D1170, D1171, D1172, D1173, D1174, D1175 |
| 1 | SRP5030CC-2R2M BOURNS | Bourns_SRP5030CC | L1040 |
| 1 | AAPS0530M1R0F COILANK INTERNATIONAL | L_Coilank_AAPS0530 | L1060 |
| 5 | PSPMAA1040-100M-ANP 10u 10A PROD Tech | PSPMAA1040 | L1230, L1330, L1430, L1530, L1630 |
| 2 | 0402CG330J500NT 33p C0G FH (Guangdong Fenghua Advanced Tech) | C_0402_1005Metric | C201, C202 |
| 73 | CL05B104KO5NNNC 100n Samsung Electro-Mechanics | C_0402_1005Metric | C203, C204, C205, C206, C207, C208, C209, C210 +65 |
| 2 | CL10A106KP8NNNC 10u 10V Samsung Electro-Mechanics | C_0603_1608Metric | C211, C221 |
| 2 | CL05B104KO5NNNC 100n 16V X7R Samsung Electro-Mechanics | C_0402_1005Metric | C222, C223 |
| 10 | CL05B104KB54PNC 100n 25V X7R Samsung Electro-Mechanics | C_0402_1005Metric | C401, C402, C501, C502, C601, C602, C701, C702 +2 |
| 12 | CGA0603X7R105K100JT 1u 10V X7R HRE | C_0603_1608Metric | C404, C409, C504, C509, C604, C609, C704, C709 +4 |
| 6 | CC0603KRX7R9BB104 100n 50V X7R YAGEO | C_0603_1608Metric | C405, C505, C605, C705, C805, C903 |
| 13 | 0402CG221J500NT 220p C0G FH (Guangdong Fenghua Advanced Tech) | C_0402_1005Metric | C406, C407, C506, C507, C606, C607, C706, C707 +5 |
| 18 | CL32B226KOJNNNE 22u 16V X7R Samsung Electro-Mechanics | C_1210_3225Metric | C411, C511, C611, C711, C811, C1042, C1043, C1044 +10 |
| 27 | CL05B104KB54PNC 100n 50V X7R Samsung Electro-Mechanics | C_0402_1005Metric | C1001, C1005, C1219, C1220, C1232, C1233, C1238, C1319 +19 |
| 6 | EEHZA1H101P 100u 50V PANASONIC | CP_Elec_10x10.5 | C1002, C1234, C1334, C1434, C1534, C1634 |
| 21 | CL31A106KBHNNNE 10u 50V X5R Samsung Electro-Mechanics | C_1206_3216Metric | C1003, C1230, C1231, C1235, C1236, C1330, C1331, C1335 +13 |
| 1 | CC0603KRX7R0BB104 100n 100V X7R YAGEO | C_0603_1608Metric | C1004 |
| 1 | CC0603KRX7R0BB223 22n 100V X7R YAGEO | C_0603_1608Metric | C1006 |
| 1 | 0402B472K500NT 4.7n FH (Guangdong Fenghua Advanced Tech) | C_0402_1005Metric | C1040 |
| 2 | CL05A475MP5NRNC 4.7u 10V X5R Samsung Electro-Mechanics | C_0402_1005Metric_WideGap | C1101, C1102 |
| 2 | CL05A475MP5NRNC 4.7u 10V X5R Samsung Electro-Mechanics | C_0402_1005Metric | C1103, C1117 |
| 2 | 0402CG150J500NT 15p C0G FH (Guangdong Fenghua Advanced Tech) | C_0402_1005Metric | C1118, C1119 |
| 8 | CL05B103KB5NNNC 10n Samsung Electro-Mechanics | C_0402_1005Metric | C1142, C1143, C1144, C1145, C1146, C1148, C1191, C1192 |
| 5 | FN15N102J500PNG 1n 50V C0G PSA(Prosperity Dielectrics) | C_0402_1005Metric | C1217, C1317, C1417, C1517, C1617 |
| 6 | CL10A225KA8NNNC 2.2u 25V X5R Samsung Electro-Mechanics | C_0603_1608Metric | C1218, C1318, C1418, C1518, C1618, C1904 |
| 5 | 0402CG330J500NT 33p 50V C0G FH (Guangdong Fenghua Advanced Tech) | C_0402_1005Metric | C1237, C1337, C1437, C1537, C1637 |
| 5 | CL05B103KB5NNNC 10n 50V X7R Samsung Electro-Mechanics | C_0402_1005Metric | C1239, C1339, C1439, C1539, C1639 |
| 1 | CL10B473KB8NNNC 47n 50V X7R Samsung Electro-Mechanics | C_0603_1608Metric | C1903 |
| 1 | CL21A106KAYNNNE 10u 16V X5R Samsung Electro-Mechanics | C_0805_2012Metric | C1912 |
| 1 | 0402WGF1202TCE 12k 1% UNI-ROYAL(Uniroyal Elec) | R_0402_1005Metric | R201 |
| 20 | 0402WGF1002TCE 10k 1% UNI-ROYAL(Uniroyal Elec) | R_0402_1005Metric | R202, R1012, R1191, R1192, R1212, R1244, R1245, R1312 +12 |
| 5 | 0402WGF2003TCE 200k 1% UNI-ROYAL(Uniroyal Elec) | R_0402_1005Metric | R203, R204, R205, R206, R1913 |
| 46 | 0402WGF1002TCE 10k UNI-ROYAL(Uniroyal Elec) | R_0402_1005Metric | R207, R208, R209, R210, R211, R212, R213, R214 +38 |
| 1 | RC0402FR-0749K9L 49.9k 1% YAGEO | R_0402_1005Metric | R216 |
| 63 | 0402WGF1003TCE 100k UNI-ROYAL(Uniroyal Elec) | R_0402_1005Metric | R217, R218, R219, R220, R221, R222, R223, R224 +55 |
| 19 | 0402WGF4701TCE 4.7k UNI-ROYAL(Uniroyal Elec) | R_0402_1005Metric | R404, R405, R504, R505, R604, R605, R704, R705 +11 |
| 1 | 0402WGF4302TCE 43k 1% UNI-ROYAL(Uniroyal Elec) | R_0402_1005Metric | R904 |
| 7 | RT0603BRD07100KL 100k 0.1% YAGEO | R_0603_1608Metric | R1001, R1002, R1231, R1331, R1431, R1531, R1631 |
| 1 | 0402WGF4702TCE 47k 1% UNI-ROYAL(Uniroyal Elec) | R_0402_1005Metric | R1003 |
| 21 | RT0603BRD0710KL 10k 0.1% YAGEO | R_0603_1608Metric | R1004, R1232, R1233, R1235, R1236, R1332, R1333, R1335 +13 |
| 1 | 0402WGF1003TCE 100k 1% UNI-ROYAL(Uniroyal Elec) | R_0402_1005Metric | R1005 |
| 1 | 0603WAF220JT5E 22 UNI-ROYAL(Uniroyal Elec) | R_0603_1608Metric | R1007 |
| 1 | 0402WGF1203TCE 120k 1% UNI-ROYAL(Uniroyal Elec) | R_0402_1005Metric | R1008 |
| 1 | 0402WGF2493TCE 249k 1% UNI-ROYAL(Uniroyal Elec) | R_0402_1005Metric | R1011 |
| 8 | 0402WGF1001TCE 1k UNI-ROYAL(Uniroyal Elec) | R_0402_1005Metric | R1013, R1102, R1103, R1239, R1339, R1439, R1539, R1639 |
| 8 | THC02H1002BT 10k 0.1% FH (Guangdong Fenghua Advanced Tech) | R_0402_1005Metric | R1040, R1060, R1142, R1145, R1148, R1151, R1154, R1157 |
| 1 | RT0402BRE072K2L 2.2k 0.1% YAGEO | R_0402_1005Metric | R1041 |
| 1 | RT0603BRD0711K3L 11.3k 0.1% YAGEO | R_0603_1608Metric | R1061 |
| 2 | 0402WGF330JTCE 33 UNI-ROYAL(Uniroyal Elec) | R_0402_1005Metric | R1101, R1171 |
| 2 | RC-02K27R0FT 27 FH (Guangdong Fenghua Advanced Tech) | R_0402_1005Metric | R1105, R1106 |
| 2 | 0402WGF2201TCE 2.2k UNI-ROYAL(Uniroyal Elec) | R_0402_1005Metric | R1131, R1132 |
| 6 | RT0402BRD0790K9L 90.9k 0.1% YAGEO | R_0402_1005Metric | R1141, R1144, R1147, R1150, R1153, R1156 |
| 6 | ARG02BTC4702 47k 0.1% Viking Tech | R_0402_1005Metric | R1143, R1146, R1149, R1152, R1155, R1158 |
| 10 | 0402WGF3902TCE 39k 1% UNI-ROYAL(Uniroyal Elec) | R_0402_1005Metric | R1211, R1243, R1311, R1343, R1411, R1443, R1511, R1543 +2 |
| 5 | RC0402FR-076K49L 6.49k 1% YAGEO | R_0402_1005Metric | R1213, R1313, R1413, R1513, R1613 |
| 5 | 0805W8F1001T5E 1k 1% UNI-ROYAL(Uniroyal Elec) | R_0805_2012Metric | R1222, R1322, R1422, R1522, R1622 |
| 5 | 0402WGF2403TCE 240k 1% UNI-ROYAL(Uniroyal Elec) | R_0402_1005Metric | R1234, R1334, R1434, R1534, R1634 |
| 5 | 0402WGF6803TCE 680k 1% UNI-ROYAL(Uniroyal Elec) | R_0402_1005Metric | R1237, R1337, R1437, R1537, R1637 |
| 5 | 0402WGF4023TCE 402k 1% UNI-ROYAL(Uniroyal Elec) | R_0402_1005Metric | R1241, R1341, R1441, R1541, R1641 |
| 5 | AC0402FR-075K49L 5.49k 1% YAGEO | R_0402_1005Metric | R1242, R1342, R1442, R1542, R1642 |
| 5 | 0805W8F1502T5E 15k 1% UNI-ROYAL(Uniroyal Elec) | R_0805_2012Metric | R1247, R1347, R1447, R1547, R1647 |
| 2 | 0402WGF6802TCE 68k 1% UNI-ROYAL(Uniroyal Elec) | R_0402_1005Metric | R1906, R1914 |
| 1 | 0402WGF2002TCE 20k 1% UNI-ROYAL(Uniroyal Elec) | R_0402_1005Metric | R1908 |
| 1 | 0402WGF1001TCE 1k 1% UNI-ROYAL(Uniroyal Elec) | R_0402_1005Metric | R1909 |
| 1 | 0402WGF1000TCE 100 UNI-ROYAL(Uniroyal Elec) | R_0402_1005Metric | R1910 |
| 1 | 0402WGF2202TCE 22k 1% UNI-ROYAL(Uniroyal Elec) | R_0402_1005Metric | R1916 |
Iasis design files
The KiCad project lives in the hydazz/iasis repository on GitHub; these links point at the commit this page was built from.
- Layouthardware/iasis/iasis.kicad_pcb
- Schematichardware/iasis/iasis.kicad_sch
Iasis: common questions
What microcontroller does the Iasis use?
The Iasis is built around the RP2354B, from the Raspberry Pi family.
How big is the Iasis PCB?
The Iasis measures 130 × 100 mm, has 6 copper layers and is 1.5688 mm thick.
How many components are on the Iasis?
636 components, from 100 distinct parts. The full bill of materials is listed on this page.
Where can I download the Iasis design files?
From the hydazz/iasis repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Iasis design in my own project?
Yes, under the terms of its Apache-2.0 license, which hydazz chose for the repository.
Can I test firmware for the Iasis without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Raspberry Pi firmware against it before you order a PCB.
